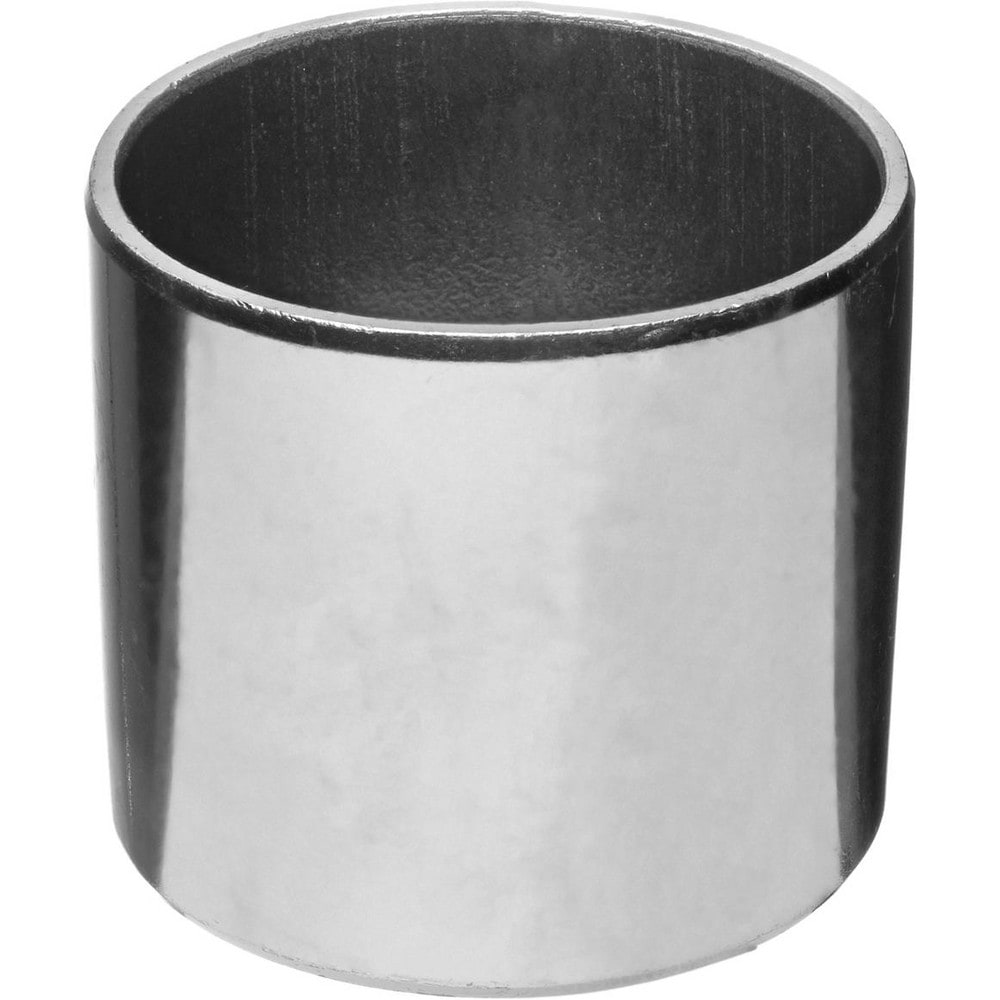

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 23/32; Outside Diameter (Decimal Inch - 4 Decimals): 0.7188; Inside Diameter (Inch): 5/8; Inside Diameter (Decimal Inch): 0.6250
Item #: 76817121
Brand: USA Industrials
Model #: ZUSAB-PB-882
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 23/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7188 |
| Inside Diameter (Inch) | 5/8 |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Material | Steel |
| Overall Length (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 0.6250 |
| Static Load Capacity | 80602.24 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 0.7190 |
| Housing Bore Limits Mininum | 0.7180 |
| Inside Diameter (mm) | 15.8800 |
| Overall Length (mm) | 15.88 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
