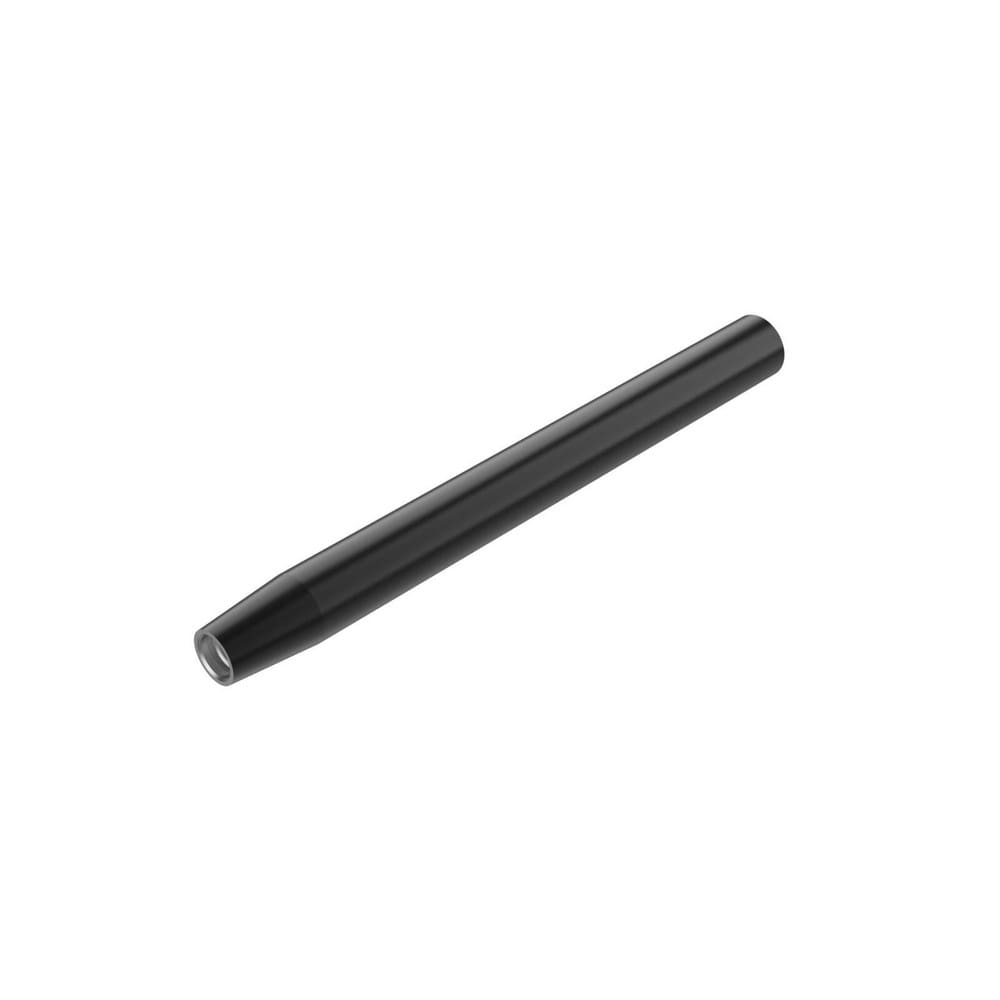

Milling Tip Insert Holders & Shanks; Projection (Inch): 1-620/949; Projection (mm): 42.000; Projection (Decimal Inch): 1.6535; Overall Length (Inch): 7-1/2; Overall Length (Decimal Inch): 7.5000; Neck Diameter (Decimal Inch): 0.0000
Item #: 88607957
Brand: Seco
Model #: 10218130
Product Specifications
| Projection (Inch) | 1-620/949 |
| Projection (mm) | 42.000 |
| Projection (Decimal Inch) | 1.6535 |
| Overall Length (Inch) | 7-1/2 |
| Overall Length (Decimal Inch) | 7.5000 |
| Neck Diameter (Decimal Inch) | 0.0000 |
| Neck Thread Size | E25 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Taper Size | 5 deg Taper |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9606 |
| Toolholder Style | XE |
| Tool Material | Steel |
| Series | XE25 |
| Head Length (mm) | 42.00 |
| Head Length (Decimal Inch) | 1.6535 |
| Maximum Diameter (Decimal Inch) | 1.0000 |
| Maximum Diameter (mm) | 25.40 |
| Tip Connection Size | E25 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| For Use With | E25 |
| Weldon Flat | No |
| Effective Length (mm) | 42.00 |
| Effective Length (Decimal Inch) | 1.6535 |
| Milling Tip Style | XSB; XSE |
| Shank Shape | Conical |
| Thread Size Connection to Shank | E25 |
| Thread Size Connection to Tip | E25 |
| Manufacturers Catalog Number | 10218130 |
| Type | Milling |
| Coolant Through | Yes |
| UNSPSC Code | 23291600 |
| Country of Origin | UNITED STATES |
