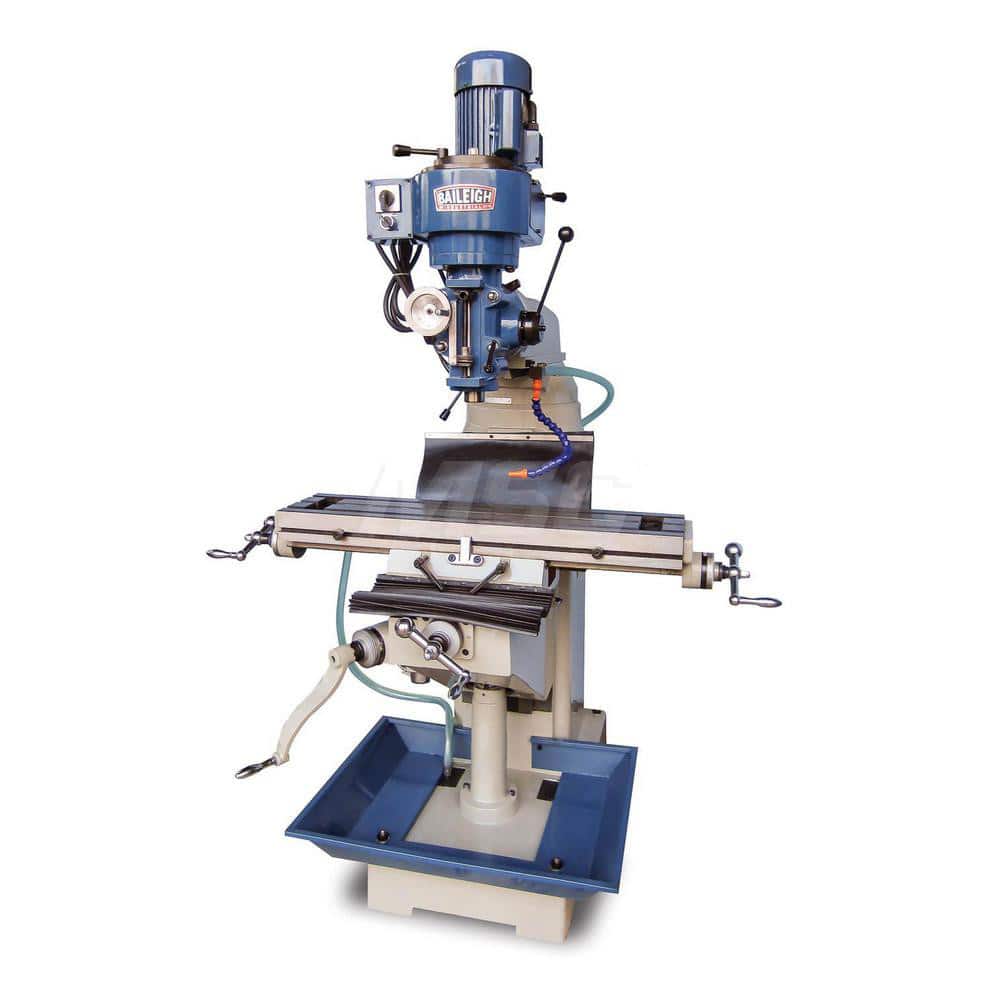

Knee Milling Machine: 15.75″, Variable Speed Control 80 to 2,720 RPM, R8 Spindle Taper
Item #: 10753879
Brand: Baileigh
Model #: 1020694
Product Specifications
| Minimum Spindle to Table Distance (Decimal Inch) | 0.8750 |
| Maximum Spindle to Table Distance (Decimal Inch) | 15.6250 |
| Minimum Spindle Speed | 80 RPM |
| Maximum Spindle Speed | 2720 RPM |
| Left-Hand Head Tilt (Degrees) | 90 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Cross Travel (Decimal Inch) | 25.5000 |
| Longitudinal Travel (Decimal Inch) | 25.5000 |
| Knee Travel (Decimal Inch) | 14.7200 |
| Table Load Capacity (Lb.) | 750.00 |
| Table Length (Inch) | 36 |
| Table Width (Inch) | 8 |
| Spindle Speed Control | Variable Speed |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Includes | Lubricator; Coolant; Work Light |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0018; 0.0034; 0.0056 |
| Maximum Spindle To Column Distance (Decimal Inch) | 15.7500 in |
| Maximum Spindle To Column Distance (Inch) | 15-3/4 |
