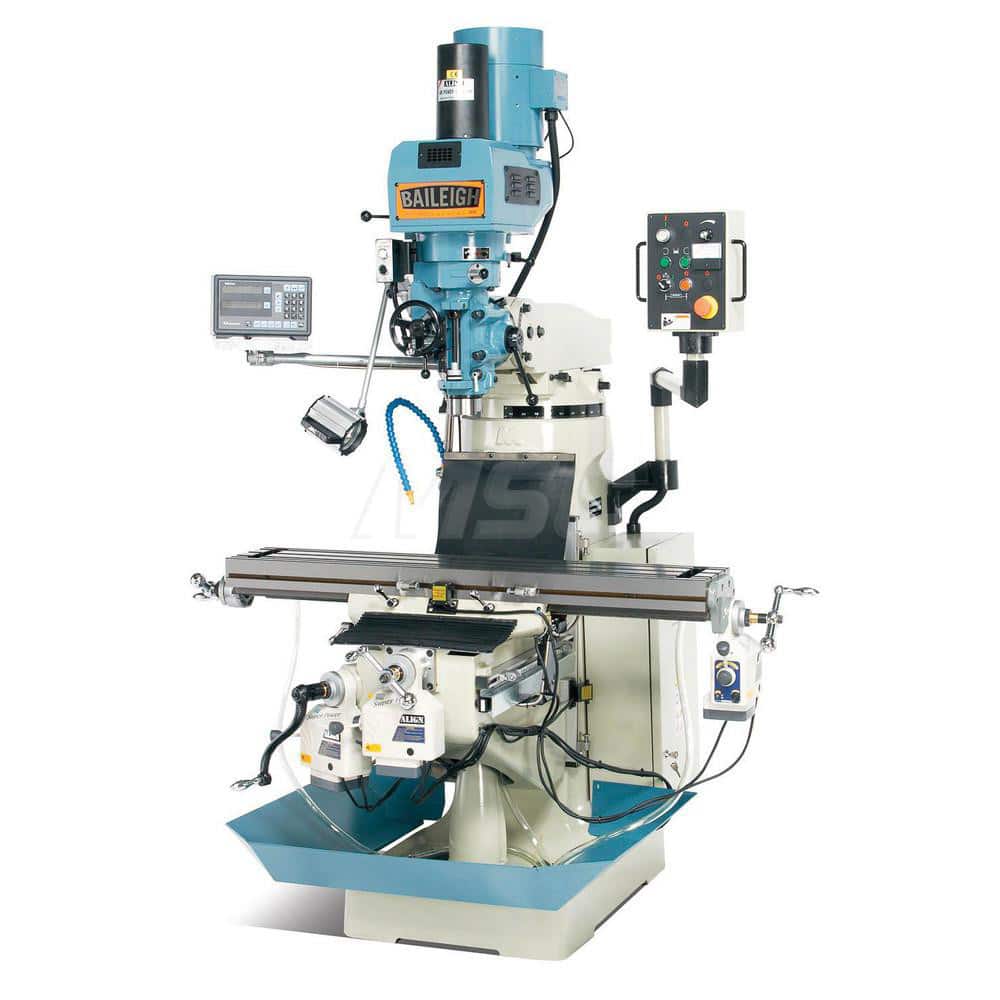

Knee Milling Machine: 20.98″, Variable Speed Control, 1 Phase 60 to 4,200 RPM, NST40 Spindle Taper
Item #: 10753804
Brand: Baileigh
Model #: 1008232
Product Specifications
| Minimum Spindle to Table Distance (Decimal Inch) | 2.2400 |
| Maximum Spindle to Table Distance (Decimal Inch) | 18.2200 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 1 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Right-Hand Head Tilt (Degrees) | 90 |
| Cross Travel (Decimal Inch) | 28.5000 |
| Longitudinal Travel (Decimal Inch) | 28.5000 |
| Knee Travel (Decimal Inch) | 15.9800 |
| Table Load Capacity (Lb.) | 440.00 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Ram Travel Length (Decimal Inch) | 12.5900 |
| Spindle Speed Control | Variable Speed |
| Spindle Taper Size | NST40 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Includes | Coolant System With Catch Tray; Air Draw Bar |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0050 |
| Maximum Spindle To Column Distance (Decimal Inch) | 20.9800 in |
