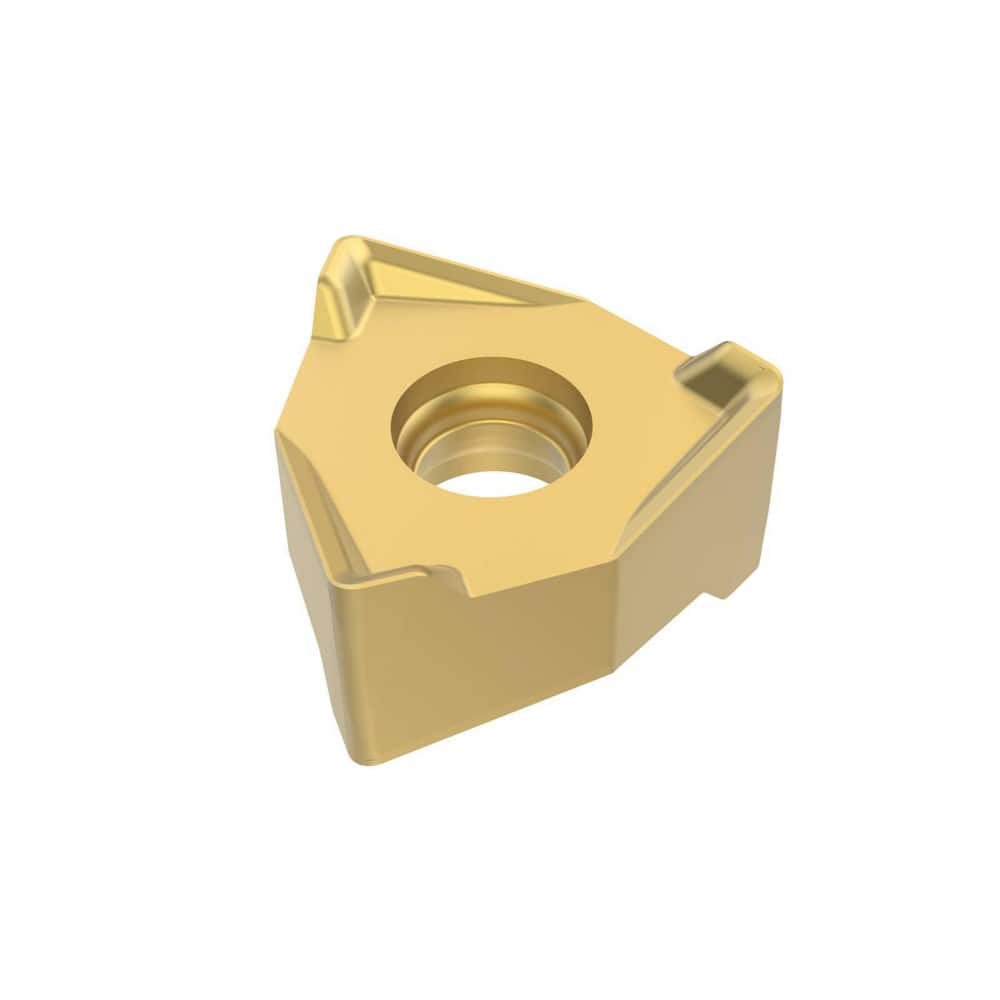

Item #: 10552842
Brand: Seco
Model #: 02967953
Product Specifications
| Insert Style | XNEX |
| Insert Size Code | 080608 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | F40M |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Left Hand |
| Relief Angle | 0.00 |
| Series | R217/220.79-08 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1810 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number Of Cutting Edges | 6 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2950 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Non-ISO |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Aluminum; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | XNEX080608TL-M13 |
| Iso Code | XNEX080608TL-M13 |
| Chip Breaker | M13 |
| Coating/Finish | Coated |
| Included Angle Degree | 88.28 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2540 |
