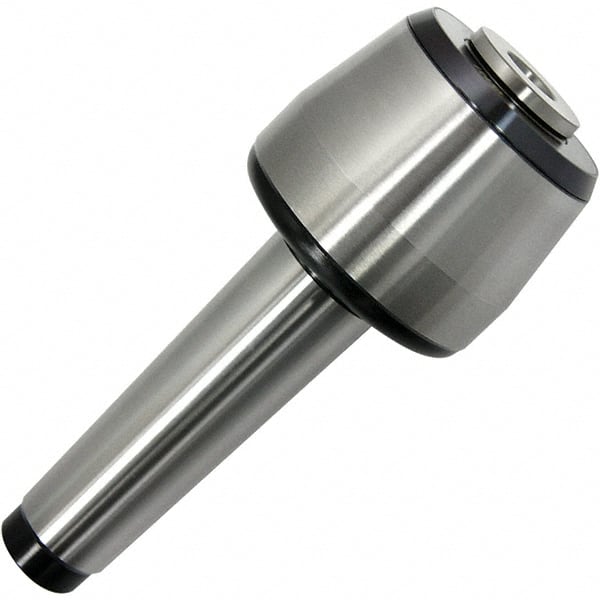

Accupro - Live Centers Shank Type: Morse Taper Taper Size: MT5
Item #: 99454274
Brand: Accupro
Model #:
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: MT5 ; Maximum Workpiece Weight (Lb.): 1,433.00 ; Maximum Workpiece Weight (kg): 650.00 ; Point Style: Interchangeable ; Point Diameter (mm): 38.00
| Shank Type | Morse Taper |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1433.00 |
| Maximum Workpiece Weight (kg) | 650.00 |
| Point Style | Interchangeable |
| Point Diameter (mm) | 38.00 |
| Point Length (mm) | 78.00 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 1433.01 |
| Head Diameter (mm) | 88.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Shank Length (Decimal Inch) | 5.3543 |
| Overall Length (mm) | 244.00 |
| Point to Gauge Line (mm) | 116.00 |
| Included Angle | 60.00 |
| Maximum RPM | 3000 |
| Carbide-Tipped | No |
