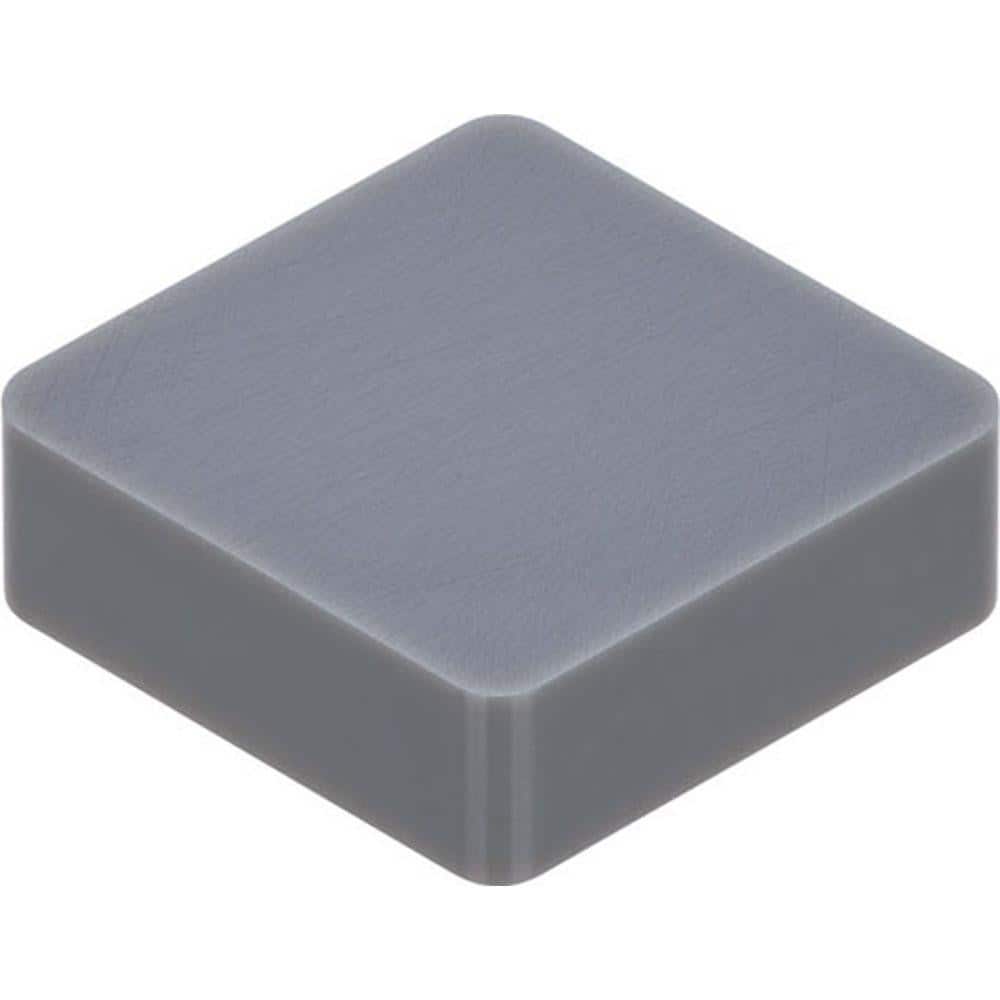

Turning Insert: CNGN433-T1 TS200, Ceramic Uncoated Finish, Neutral, 0.5080″ Long, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, N/A Diamond, Series CNGN
Item #: 09999681
Brand: Tungaloy
Model #: 6320955
Product Specifications
| Insert Style | CNGN |
| Insert Shape Code | C |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | TS200 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Relief Angle | 0 |
| Series | CNGN |
| Coating Process | Uncoated |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Chip Breaker | N |
| Coating/Finish | Uncoated |
