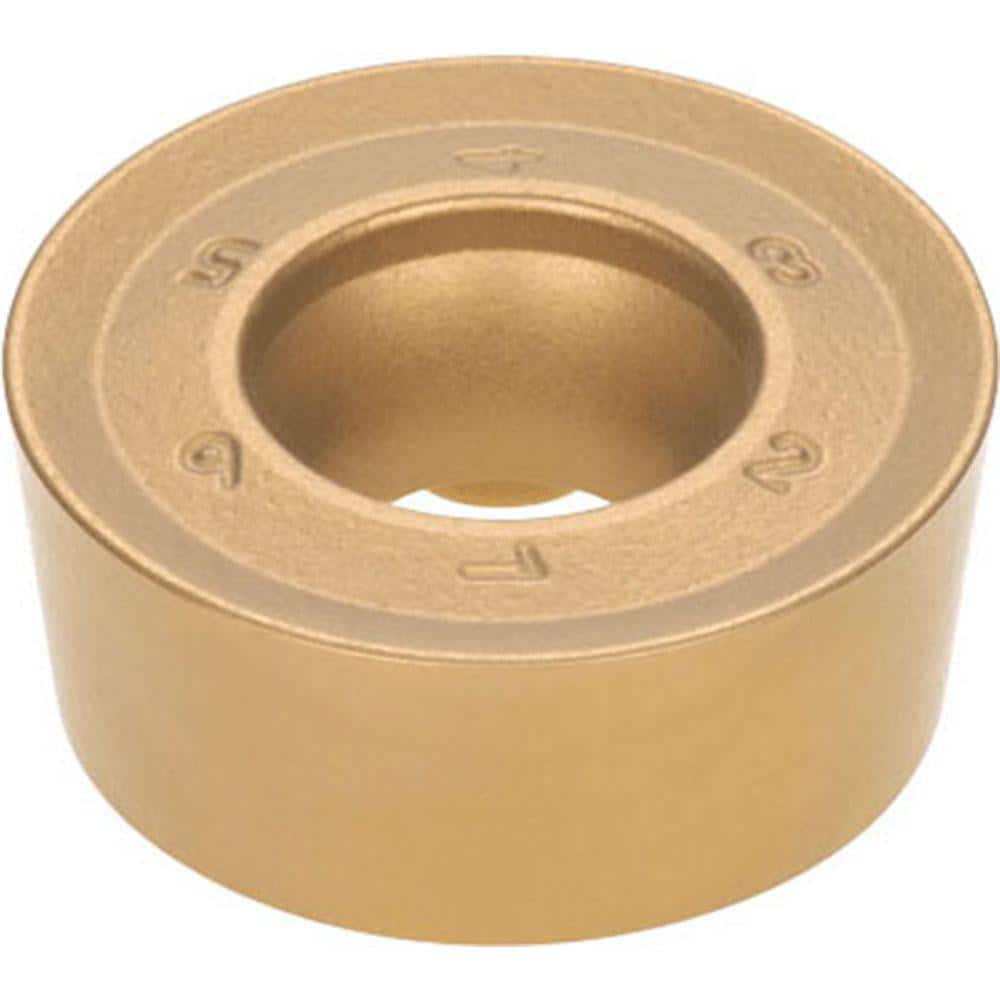

Turning Insert: RCMT1204M0-6RM NS9530, Cermet Uncoated Finish, Neutral, 0.4720″ Long, 0.2360″ Corner Radius, N/A Round, Series RCMT
Item #: 09983750
Brand: Tungaloy
Model #: 6728413
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 43 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | NS9530 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Relief Angle | 7 |
| Series | RCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4720 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | 6RM |
| Coating/Finish | Uncoated |
