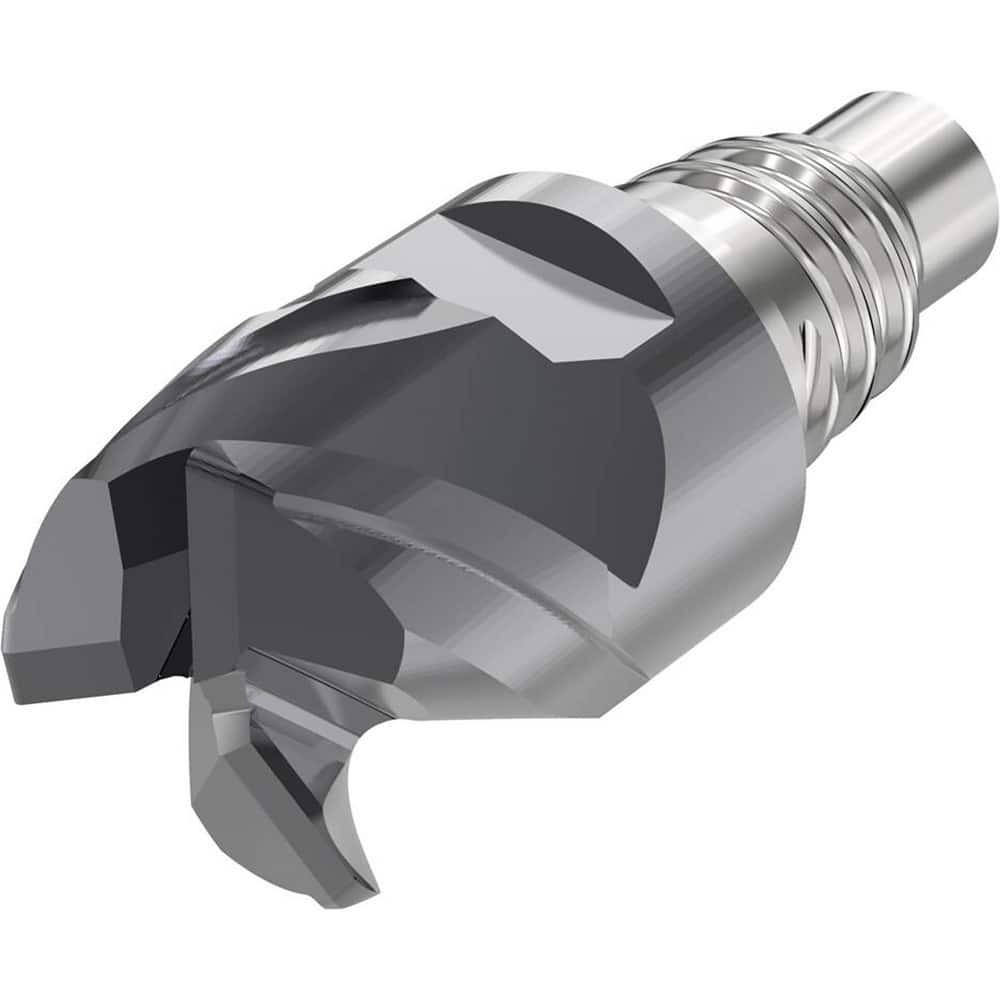

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 3/8; Mill Diameter (Decimal Inch): 0.3750; Connection Type: E10; Overall Length (Decimal Inch): 0.9252; Centercutting: Yes; Corner Radius (Decimal Inch): 0.0300; Minimum Helix Angle: 48;
Item #: 09945619
Brand: Seco
Model #: 10138146
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Connection Type | E10 |
| Overall Length (Decimal Inch) | 0.9252 |
| Centercutting | Yes |
| Corner Radius (Decimal Inch) | 0.0300 |
| Minimum Helix Angle | 48 |
| Maximum Helix Angle | 48 |
| Flute Type | Helical |
| Series | XSE550 |
| Helix Angle | 48 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Number Of Flutes | 3 |
| Coating/Finish | SIRON-A |
| End Mill Material | Solid Carbide |
| Coolant Through | No |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2063 |
| Variable Index | No |
