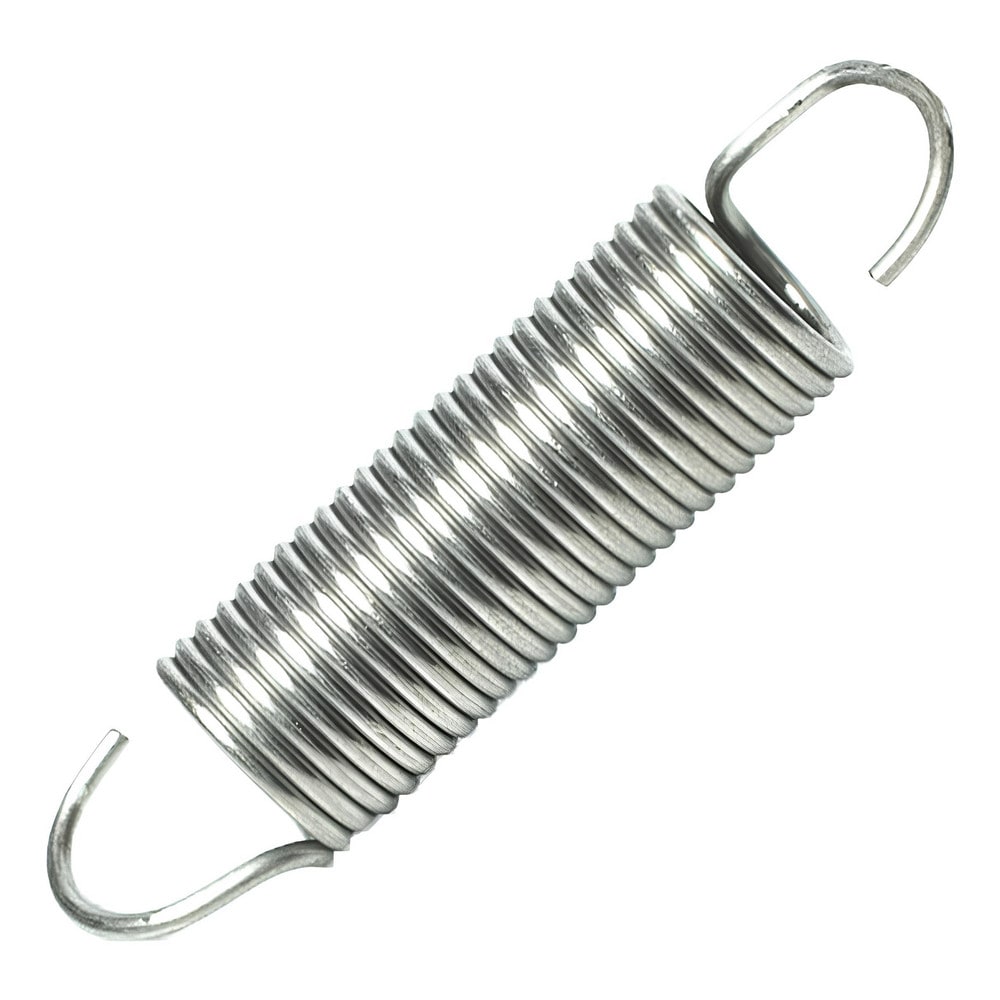

Extension Springs; End Type: Hook; Outside Diameter (Decimal Inch
Item #: 03212347
Brand: Associated Spring Raymond
Model #: MH10001155000S
Product Specifications
| End Type | Hook |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.0000 |
| Spring Rate | 10.9100 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 5.2300 |
| Initial Tension (Lb.) | 4.08 |
| Maximum Extended Length (Decimal Inch) | 8.7800 |
| Free Length (Inch) | 5 |
| Inside Hook Length (Fractional Inch) | 5 |
| Standards | AMS 5688; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.1150 |
| UNSPSC Code | 31161907 |
