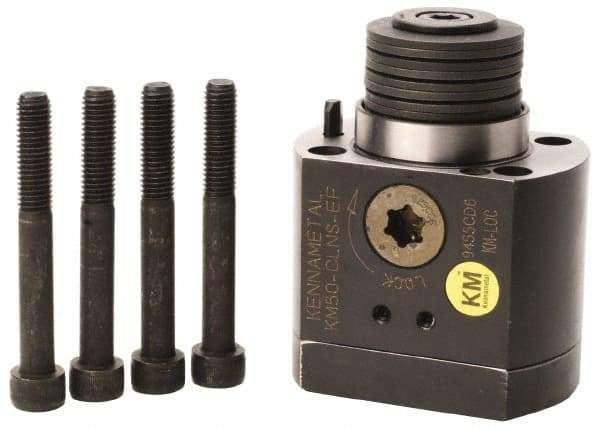

Kennametal - Neutral Cut, KM40 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 40.01mm Square Shank Diam, 3.795" OAL, Through Coolant, Series CLNS-EF Flange Mount Side Access
Item #: 09730417
Brand: Kennametal
Model #: 1024679
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Series Code | CLNS-EF Flange Mount Side Access |
| Connection Size | KM40 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 40.01 |
| Shank Diameter (Decimal Inch) | 1.5750 |
| Through Coolant | Yes |
| Head Height (mm) | 48.01 |
| Head Height (Decimal Inch) | 1.8900 |
| Overall Length (mm) | 96.39 |
| Overall Length (Decimal Inch) | 3.7950 |
| Head Length (Decimal Inch) | 2.1650 |
| Head Length (mm) | 54.99 |
| Shank Length (mm) | 41.40 |
| Shank Length (Decimal Inch) | 1.6300 |
