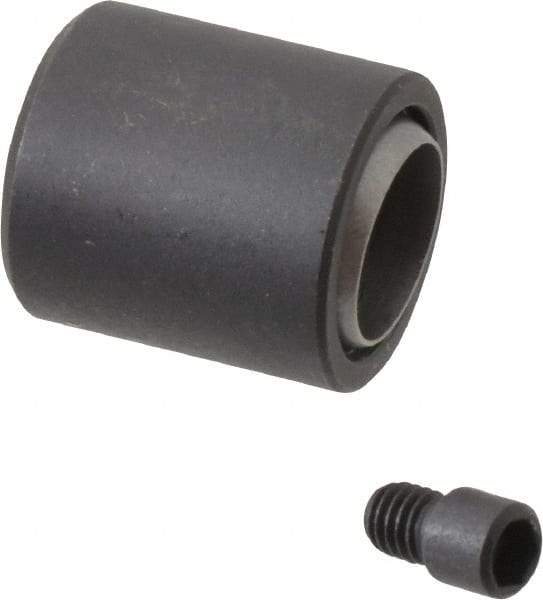

Fairlane - 5/16-24, 0.3500" Thread Length, 5/8" Ball Diam, Alloy Steel, Black Oxide, Base, Swivel Action Gripper Assemblies - 13/16" Diam, 11/32" Deep Thread, 7/8" Overall Height, Stainless Steel Ball
Item #: 09718347
Brand: Fairlane
Model #: BBU-600
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Assembly Type | Base |
| Thread Size | 5/16-24 |
| Ball Diameter (Inch) | 5/8 |
| Diameter (Inch) | 13/16 |
| Overall Height (Inch) | 7/8 |
| Thread Length (Decimal Inch) | 0.3500 |
| Degree of Swivel | 24 |
| Ball Material | Stainless Steel |
| Tap Size | 5/16-24 |
| Thread Depth (Inch) | 11/32 |
| Replaceable Pad | No |
| Load Rating (Lb.) | 10925.00 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Replacement Pad Diameter (Inch) | 1/2 |
| Replacement Pad Height (Inch) | 3/8 |
