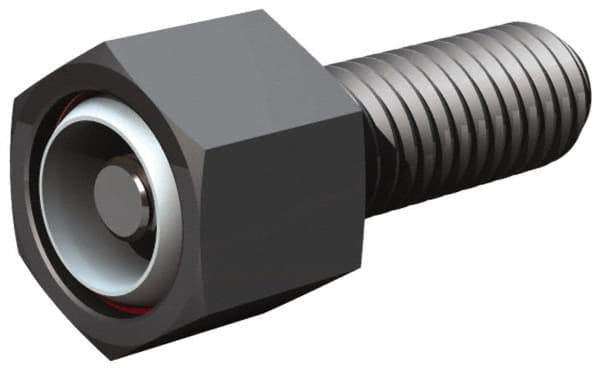

Fairlane - 3/4-10, 1" Thread Length, 7/8" Ball Diam, Alloy Steel, Hex Head, Swivel Action Gripper Assemblies - 3/4" Head Height, 1-1/8" Hex, Stainless Steel Ball
Item #: 09718271
Brand: Fairlane
Model #: BUH-0755
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Assembly Type | Hex Head |
| Thread Size | 3/4-10 |
| Ball Diameter (Inch) | 7/8 |
| Thread Length (Inch) | 1 |
| Degree of Swivel | 20 |
| Ball Material | Stainless Steel |
| Hex Size (Inch) | 1-1/8 |
| Head Height (Inch) | 3/4 |
| Internal Hex Size (Inch) | 5/16 |
| Replaceable Pad | Yes |
| Load Rating (Lb.) | 14862.00 |
| Material | Alloy Steel |
| Replacement Pad Diameter (Inch) | 3/4 |
| Replacement Pad Height (Inch) | 3/4 |
| Stand Off (Inch) | 1/4 |
