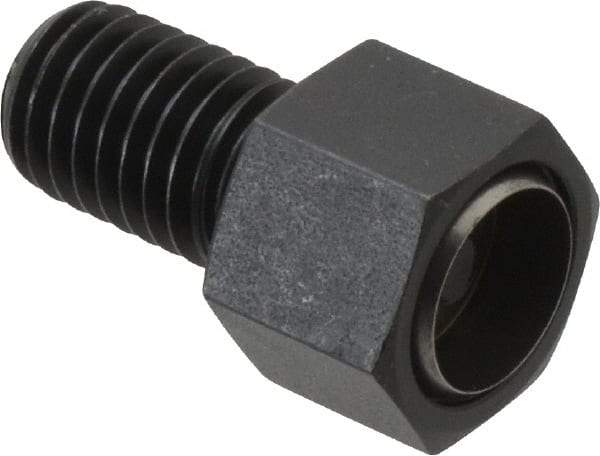

Fairlane - 5/8-11, 1" Thread Length, 3/4" Ball Diam, Alloy Steel, Hex Head, Swivel Action Gripper Assemblies - 11/16" Head Height, 15/16" Hex, Stainless Steel Ball
Item #: 09718230
Brand: Fairlane
Model #: BUH-0625
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Assembly Type | Hex Head |
| Thread Size | 5/8-11 |
| Ball Diameter (Inch) | 3/4 |
| Thread Length (Inch) | 1 |
| Degree of Swivel | 22 |
| Ball Material | Stainless Steel |
| Hex Size (Inch) | 15/16 |
| Head Height (Inch) | 11/16 |
| Internal Hex Size (Inch) | 1/4 |
| Replaceable Pad | Yes |
| Load Rating (Lb.) | 9932.00 |
| Material | Alloy Steel |
| Replacement Pad Diameter (Inch) | 5/8 |
| Replacement Pad Height (Inch) | 5/8 |
| Stand Off (Inch) | 1/4 |
