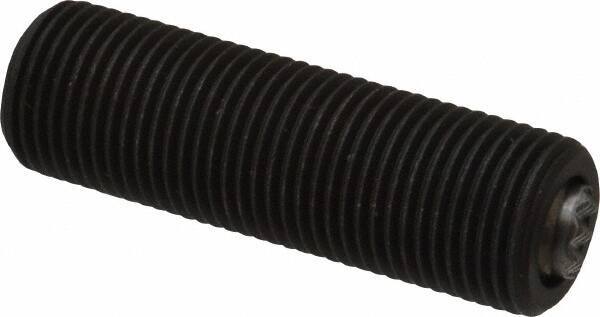

Fairlane - 5/8-18, 2" Thread Length, 3/8" Ball Diam, Serrated Ball Pad Surface, Alloy Steel, Black Oxide, Threaded, Swivel Action Gripper Assemblies - 5/16" Contact Diam, High Speed Steel Ball
Item #: 09717968
Brand: Fairlane
Model #: TBU-0620 X 2-S
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Assembly Type | Threaded |
| Thread Size | 5/8-18 |
| Ball Diameter (Inch) | 3/8 |
| Contact Diameter (Inch) | 5/16 |
| Thread Length (Inch) | 2 |
| Ball Pad Surface Type | Serrated |
| Degree of Swivel | 28 |
| Ball Material | High Speed Steel |
| Internal Hex Size (Inch) | 5/16 |
| Tooth Grade | Extra Fine |
| Replaceable Pad | No |
| Load Rating (Lb.) | 6131.00 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Stand Off (Inch) | 1/16 |
