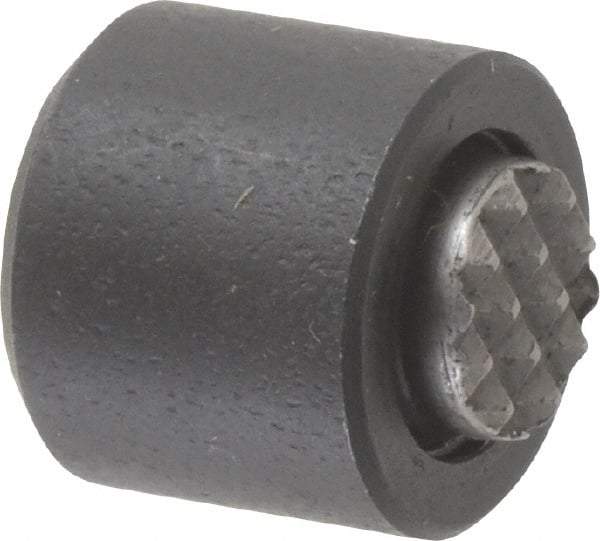

Fairlane - 8-32, 5/32" Thread Length, 1/4" Ball Diam, Serrated Ball Pad Surface, Alloy Steel, Black Oxide, Base, Swivel Action Gripper Assemblies - 7/16" Diam, 5/32" Deep Thread, 1/4" Contact Diam, 7/16" Overall Height, High Speed Steel Ball
Item #: 09717398
Brand: Fairlane
Model #: BBU-200-S
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Assembly Type | Base |
| Thread Size | 8-32 |
| Ball Diameter (Inch) | 1/4 |
| Diameter (Inch) | 7/16 |
| Overall Height (Inch) | 7/16 |
| Contact Diameter (Inch) | 1/4 |
| Thread Length (Inch) | 5/32 |
| Ball Pad Surface Type | Serrated |
| Degree of Swivel | 28 |
| Ball Material | High Speed Steel |
| Tap Size | 8-32 |
| Thread Depth (Inch) | 5/32 |
| Tooth Grade | Super Fine |
| Replaceable Pad | No |
| Load Rating (Lb.) | 3339.00 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Stand Off (Inch) | 1/16 |
