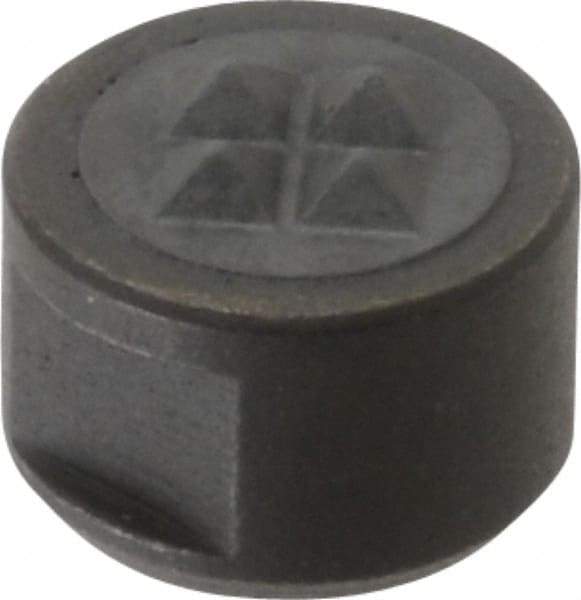

Fairlane - 10-32 Thread, 1/2" Diam, 3/8" High, Threaded, 4-Point Tooth Grade Diamond Serration Tooth Pattern, Carbide Tipped, Round Positioning Gripper - 3/16" Flat Width, Uncoated
Item #: 09714379
Brand: Fairlane
Model #: CT-841-4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Material | Carbide-Tipped |
| Attachment Style | Threaded |
| Thread Size | 10-32 |
| Tooth Pattern | Diamond Serration |
| Tooth Grade | 4-Point |
| Finish/Coating | None |
| Diameter (Inch) | 1/2 |
| Height (Inch) | 3/8 |
| Flat Width (Inch) | 3/16 |
| Chamfer | 0.03 x 45 |
| Carbide Diameter (Inch) | 3/8 |
| Flat Position (Inch) | 11/64 |
