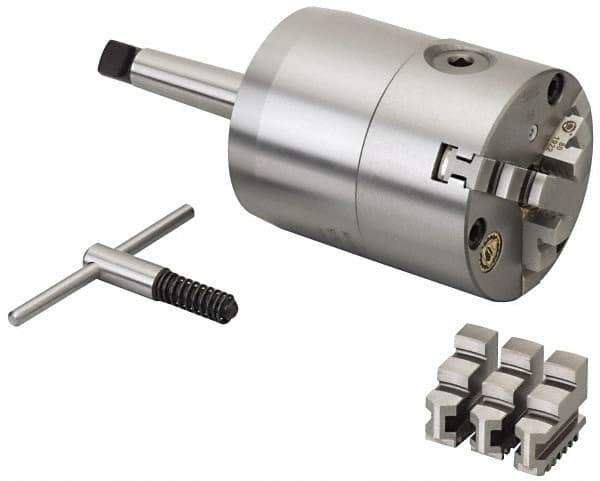

Bison - 3 Jaws, 5" Diam, Self Centering Manual Lathe Chuck - 4MT Mount Spindle, 3,200 Max RPM, 1.77" Through Hole Diam, Cast Iron
Item #: 09673161
Brand: Bison
Model #: 7-860-0500
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 5 |
| Number of Jaws | 3 |
| Mount | 4MT |
| Through-Hole Diameter (Decimal Inch) | 1.7700 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 5 |
| Minimum Jaw Capacity (Decimal Inch) | 0.1200 |
| Maximum Jaw Capacity (Decimal Inch) | 4.9200 |
| Adjustable | No |
| Body Length (Decimal Inch) | 4.5700 |
| Face to Gauge Line (Decimal Inch) | 7.3200 |
| Overall Length (Decimal Inch) | 9.4500 |
| Maximum RPM | 3200 |
| Includes | (2) Sets of Hard Solid Jaws |
