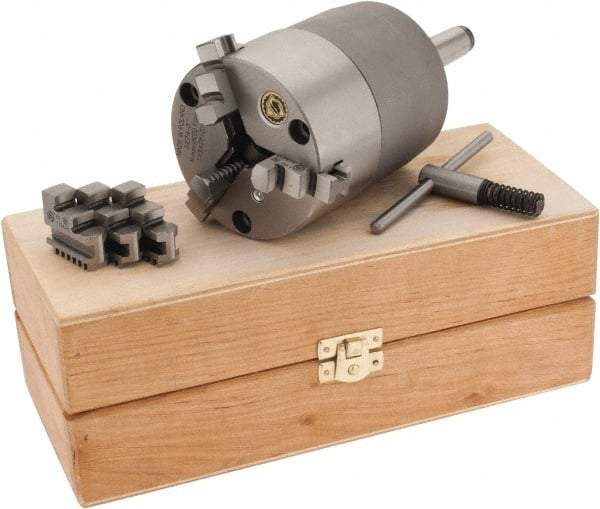

Bison - 3 Jaws, 3" Diam, Self Centering Manual Lathe Chuck - 2MT Mount Spindle, 4,000 Max RPM, 0.98" Through Hole Diam, Cast Iron
Item #: 09673120
Brand: Bison
Model #: 7-860-0300
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 3 |
| Number of Jaws | 3 |
| Mount | 2MT |
| Through-Hole Diameter (Decimal Inch) | 0.9800 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 3 |
| Minimum Jaw Capacity (Decimal Inch) | 0.0800 |
| Maximum Jaw Capacity (Decimal Inch) | 2.8000 |
| Adjustable | No |
| Body Length (Decimal Inch) | 3.8400 |
| Face to Gauge Line (Decimal Inch) | 5.0400 |
| Overall Length (Decimal Inch) | 6.9900 |
| Maximum RPM | 4000 |
| Includes | (2) Sets of Hard Solid Jaws |
