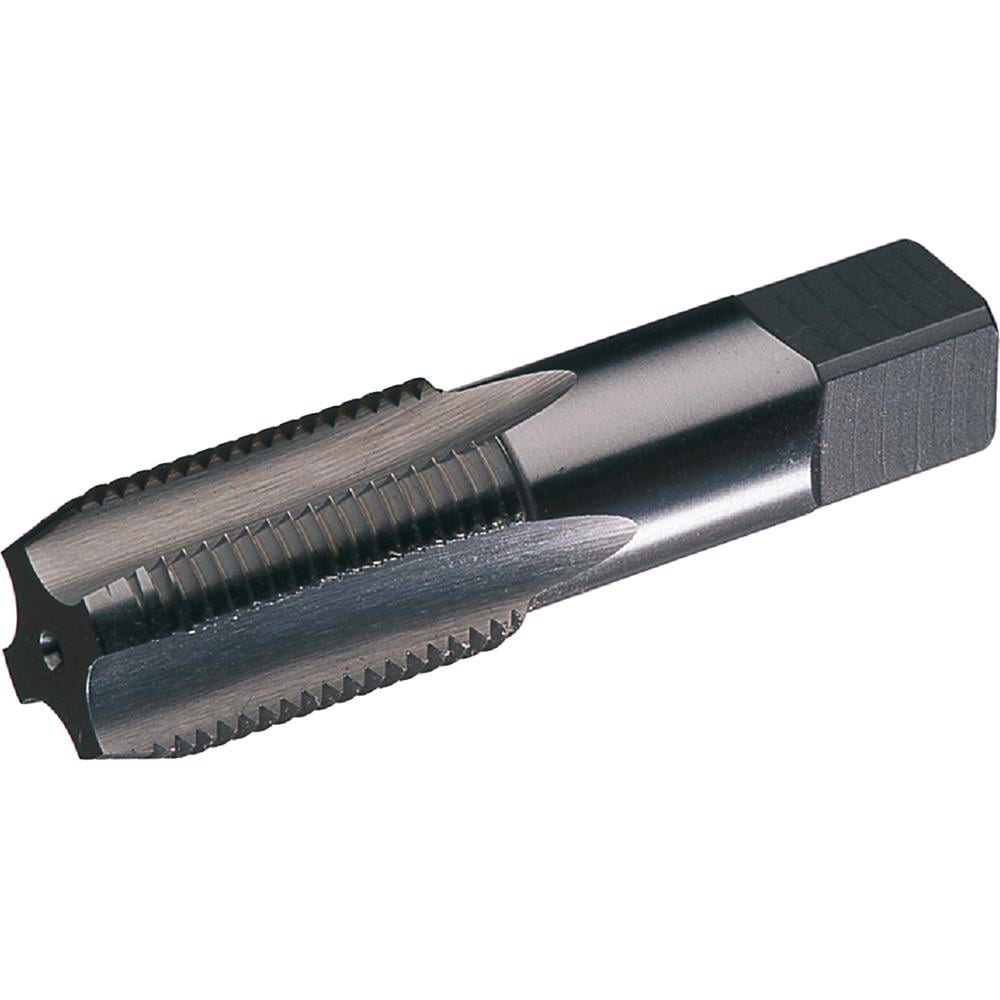

Brand: Widia / Part #: 2748074
Item #: 90309337
Brand: Widia
Model #: 2748074
Product Specifications
| Thread Standard | NPS |
| Material | High Speed Steel |
| Overall Length (Inch) | 3-1/8 |
| Overall Length (Decimal Inch) | 3.1250 |
| Threads per Inch | 14 |
| Thread Size (Inch) | 1/2-14 |
| Application | Metal |
| Thread Length (Inch) | 1-21/32 |
| Tap Type | Machine Tap |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Square Size (Decimal Inch) | 0.2750 |
| Chamfer | Modified Bottoming |
| Thread Profile | Standard |
| Series | 5323 |
| Thread Length (Decimal Inch) | 1.6562 |
| Coating/Finish | Uncoated |
| Square Length (Decimal Inch) | 0.4375 |
| Projection (Decimal Inch) | 1.6562 |
| Thread Pitch (mm) | 1.81 |
| Thread Depth (Decimal Inch) | 1.6562 |
| Number Of Flutes | 4 |
| Square Length (mm) | 11.11 |
