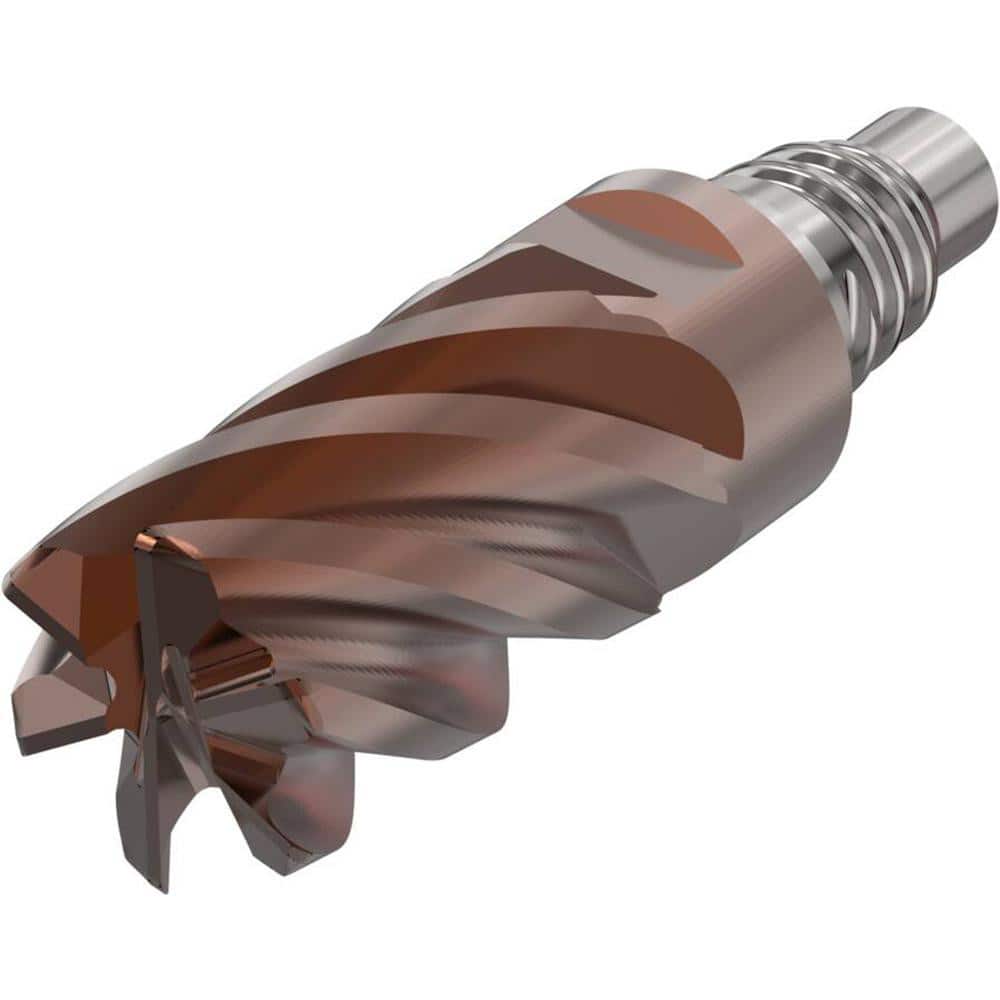

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 1; Mill Diameter (Decimal Inch): 1.0000; Length of Cut (Inch): 1-1/2; Connection Type: E25; Overall Length (Decimal Inch): 2.9252; Centercutting: Yes; Corner Radius (Decimal Inch): 0.030
Item #: 09526740
Brand: Seco
Model #: 10138219
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1-1/2 |
| Connection Type | E25 |
| Overall Length (Decimal Inch) | 2.9252 |
| Centercutting | Yes |
| Corner Radius (Decimal Inch) | 0.0300 |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Flute Type | Helical |
| Series | XSE720 |
| Helix Angle | 38 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Number Of Flutes | 6 |
| Coating/Finish | HXT |
| End Mill Material | Solid Carbide |
| Coolant Through | No |
| Variable Helix | No |
| Variable Index | No |
