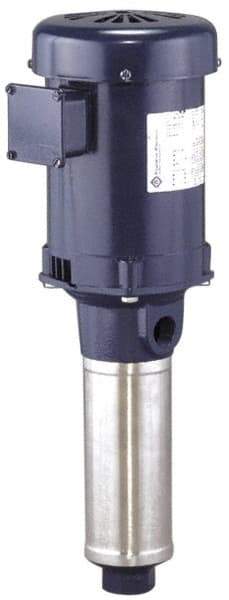

Graymills - 3 hp, 3 Phase, 230/460 Volt, Immersion Pump, Multi Stage Booster Pump - Machine Tool Coolant, TEFC Motor, 13 Stage
Item #: 09278060
Brand: Graymills
Model #: MSPR13-3.0F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Applications | Machine Tool Coolant |
| Pump Type | Immersion |
| Stages | 13 |
| Horsepower | 3 |
| Voltage | 230/460 |
| Motor Type | TEFC |
| Phase | 3 |
| RPM | 3500.000 |
| GPM | 35.00 |
| Maximum Inlet Pressure (psi) | 75 |
| Maximum Working Pressure (psi) | 180.00 |
| Self Priming | Yes |
| Thread Type | NPT |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1 |
| Overall Height (Inch) | 30 |
| Body Length (Inch) | 11-1/4 |
| Shaft Length (Inch) | 15-7/8 |
| Immersion Depth (Inch) | 14 |
| Distance Between Ports (Inch) | 16-3/4 |
| Housing Material | Cast Iron |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon Ceramic |
