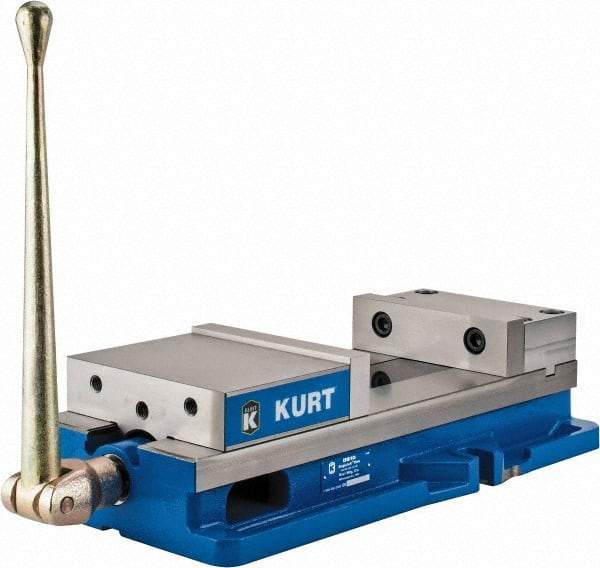

Kurt - 8" Jaw Width, 10" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 11,596 Lb Capacity, 1 Station, 24.185" Long x 5.51" High x 2-13/64" Deep, 2.2" Jaw Height, 80,000 psi Max Clamp Force, Ductile Iron
Item #: 09215088
Brand: Kurt
Model #: D810
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 8 |
| Jaw Opening Capacity (Inch) | 10 |
| Throat Depth (Inch) | 2-13/64 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (Decimal Inch) | 2.2000 |
| Base Length (Decimal Inch) | 21.8100 |
| Jaw Material | Steel |
| Precision | Yes |
| Overall Length (Decimal Inch) | 24.1850 |
| Vise Material | Ductile Iron |
| Load Capacity (Lb.) | 11596.00 |
| Base Height (Decimal Inch) | 3.3100 |
| Maximum Clamping Force (psi) | 80000.00 |
| Overall Height (Decimal Inch) | 5.5100 |
| Model Number | D810 |
