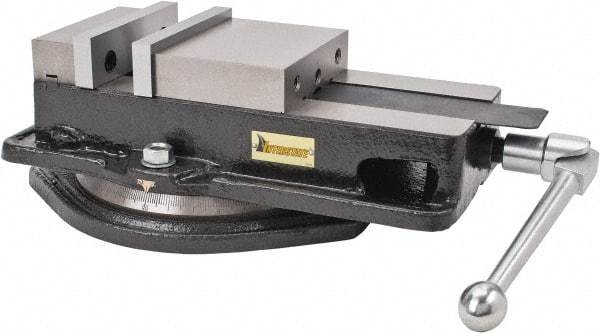

Interstate - 6" Jaw Width, 7-1/2" Jaw Opening Capacity, Horizontal Swivel Machine Vise - Manual Operation, 5,620 Lb Capacity, 1 Station, 17.3" Long x 4.72" High x 1-1/2" Deep, 1-1/2" Jaw Height, Cast Iron
Item #: 09214560
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Swivel vises are designed to rotate 360 degrees without moving the workpiece from the vise.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 7-1/2 |
| Throat Depth (Inch) | 1-1/2 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Swivel |
| Operation Type | Manual |
| Jaw Height (Inch) | 1-1/2 |
| Precision | Yes |
| Overall Length (Decimal Inch) | 17.3000 |
| Vise Material | Cast Iron |
| Load Capacity (Lb.) | 5620.00 |
| Overall Height (Decimal Inch) | 4.7200 |
| Model Number | ELV |
