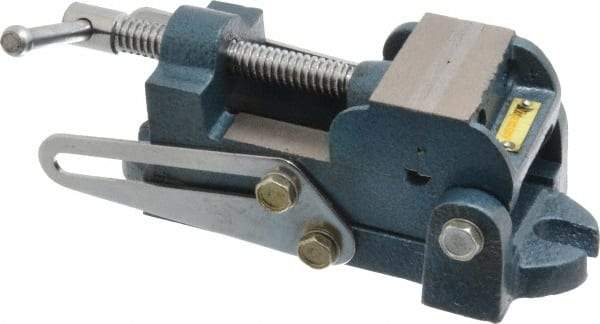

Interstate - 2" Jaw Opening Capacity x 1" Throat Depth, Angle Drill Press Vise - 2-1/2" Wide x 1.35" High Jaw, Stationary Base, Standard Speed, 7.59" OAL x 2.87" Overall Height, Cast Iron
Item #: 09193012
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with an angle orientation feature a hand-tightening mechanism to lock the angle from 0 to 90 degrees.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 2-1/2 |
| Jaw Opening Capacity (Inch) | 2 |
| Jaw Opening Capacity (Decimal Inch) | 2.0000 |
| Throat Depth (Inch) | 1 |
| Throat Depth (Decimal Inch) | 1.0000 |
| Orientation Type | Angle |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Decimal Inch) | 7.5900 |
| Overall Height (Decimal Inch) | 2.8700 |
| Vise Material | Cast Iron |
| Model Number | EAV |
| Jaw Height (Decimal Inch) | 1.3500 |
