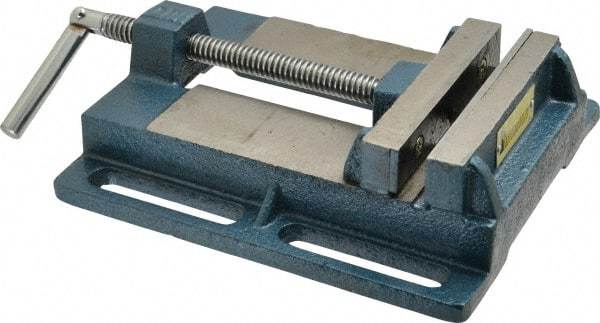

Interstate - 4-5/8" Jaw Opening Capacity x 1" Throat Depth, Horizontal Drill Press Vise - 5" Wide x 1" High Jaw, Stationary Base, Standard Speed, 9.65" OAL x 2.33" Overall Height, Cast Iron
Item #: 09190059
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 5 |
| Jaw Opening Capacity (Inch) | 4-5/8 |
| Jaw Opening Capacity (Decimal Inch) | 4.6250 |
| Throat Depth (Inch) | 1 |
| Throat Depth (Decimal Inch) | 1.0000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Decimal Inch) | 9.6500 |
| Overall Height (Decimal Inch) | 2.3300 |
| Base Length (Inch) | 8-3/4 |
| Base Width (Inch) | 7-3/4 |
| Vise Material | Cast Iron |
| Jaw Height (Inch) | 1 |
| Jaw Height (Decimal Inch) | 0.9800 |
