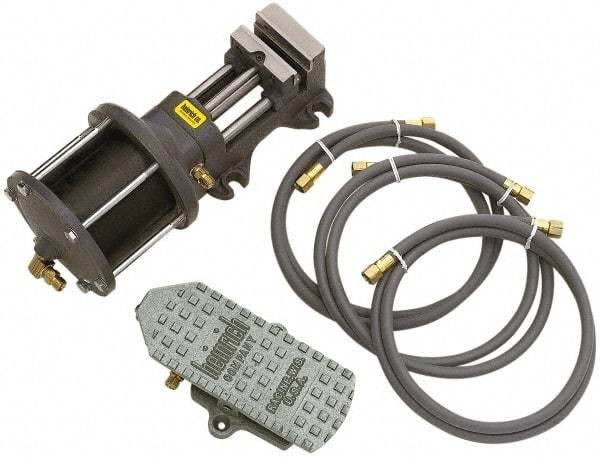

Heinrich - 6" Jaw Width, 7-3/8" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Air Operation, 1 Station, 6-17/32" High x 2-1/2" Deep, 13/16" Jaw Height
Item #: 09139262
Brand: Heinrich
Model #: DA-6601-ASSEMBL
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 7-3/8 |
| Throat Depth (Inch) | 2-1/2 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Air |
| Jaw Height (Inch) | 13/16 |
| Base Length (Inch) | 25-5/8 |
| Jaw Material | Steel |
| Precision | No |
| Base Width (Inch) | 9-1/2 |
| Base Height (Inch) | 5 |
| Overall Height (Inch) | 6-17/32 |
