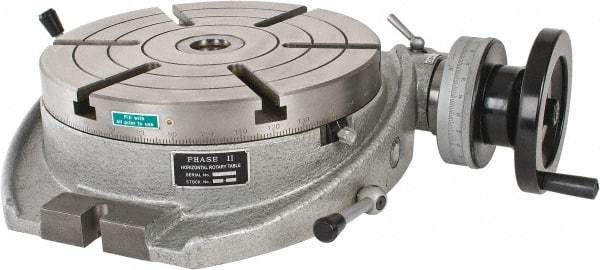

Phase II - 10" Table Diam, Horizontal Rotary Machining Table - 6-3/4" Centerline Height, 3MT Center Taper, 0.465" T-Slot Width
Item #: 09102484
Brand: Phase II
Model #: 220-010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Horizontal |
| Tilting | No |
| Cross-Slide | No |
| Table Diameter (Inch) | 10 |
| T-Slot Width (Decimal Inch) | 0.4650 |
| Centerline Height (Decimal Inch) | 6.7500 |
| Center Taper | 3MT |
| Center Hole Concentricity (Decimal Inch) | 0.0008 |
| Base Length (Inch) | 13 |
| Overall Height (Inch) | 3-11/16 |
