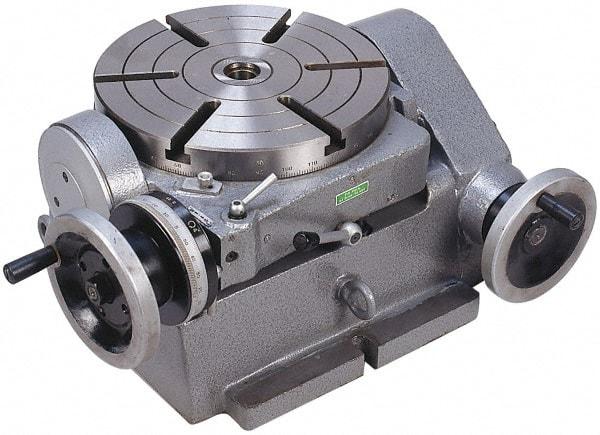

Phase II - 249.94mm Table Diam, Horizontal Tilting Rotary Machining Table - 150.11mm Centerline Height, 1.2" Bore Diam, 3MT Center Taper, 11.94mm T-Slot Width, 90:1 Gear Ratio
Item #: 09102310
Brand: Phase II
Model #: 222-410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Horizontal |
| Tilting | Yes |
| Cross-Slide | No |
| Table Diameter (Decimal Inch) | 10.0000 |
| T-Slot Width (mm) | 11.94 |
| T-Slot Width (Decimal Inch) | 0.4700 |
| Centerline Height (mm) | 150.11 |
| Centerline Height (Decimal Inch) | 5.5100 |
| Center Bore Diameter (Decimal Inch) | 1.2000 |
| Center Taper | 3MT |
| Maximum Tilt Angle | 90.00 |
| Gear Ratio | 90:1 |
| Indexing Accuracy (sec.) | 45.00 |
| Base Width (mm) | 186.94 |
| Base Width (Decimal Inch) | 7.3600 |
| Base Length (mm) | 210.06 |
| Base Length (Decimal Inch) | 8.2700 |
| Overall Height (mm) | 495.00 |
| Overall Height (Decimal Inch) | 8.0700 |
