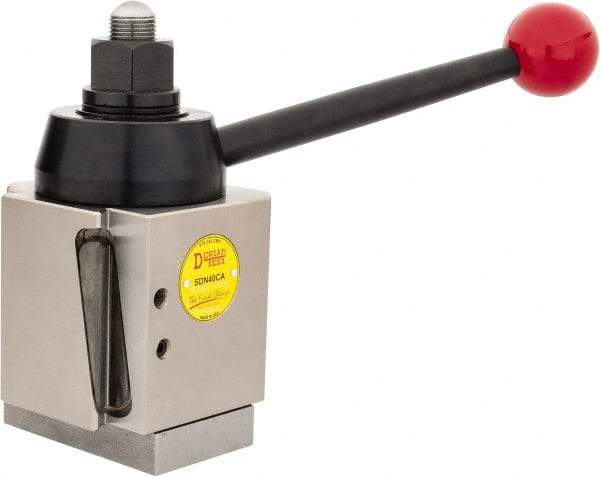

Dorian Tool - 16 to 20 Inch Lathe Swing, Wedge Type Quick Change Tool Post - 6-3/8 Inch Tool Post Height, Series CA, 1-9/16 to 2-3/4 Inch Centerline Height Range, 7-1/8 Inch Overall Height
Item #: 09056664
Brand: Dorian Tool
Model #: 73310101006
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Wedge Type |
| Series | CA |
| Lathe Swing (mm) | 400 to 500 |
| Lathe Swing (Inch) | 16 to 20 |
| Through Coolant | No |
| Base Width (mm) | 101.60 |
| Base Width (Inch) | 4 |
| Base Width (Decimal Inch) | 4.0000 |
| Tool Post Height (Decimal Inch) | 6.3750 |
| Tool Post Height (mm) | 160.91 |
| Centerline to Handle Edge (Inch) | 9-5/16 |
| Bolt Hole Diameter (mm) | 22.23 |
| Bolt Hole Diameter (Inch) | 7/8 |
| Bolt Hole Diameter (Decimal Inch) | 0.8750 |
| Overall Height (Inch) | 7-1/8 |
| Centerline to Body (Inch) | 2 |
| Minimum Centerline Height (mm) | 39.69 |
| Minimum Centerline Height (Inch) | 1-9/16 |
| Minimum Centerline Height (Decimal Inch) | 1.5625 |
| Maximum Centerline Height (Inch) | 2-3/4 |
| Maximum Centerline Height (Decimal Inch) | 2.5625 |
| Maximum Centerline Height (mm) | 65.09 |
| Body Height (mm) | 95.25 |
| Body Height (Inch) | 3-3/4 |
| Body Height (Decimal Inch) | 3.7500 |
| Repeatability (Decimal Inch) | 0.000100 |
| Includes | Machinable Blank T-Nut or Bolt Shaft |
