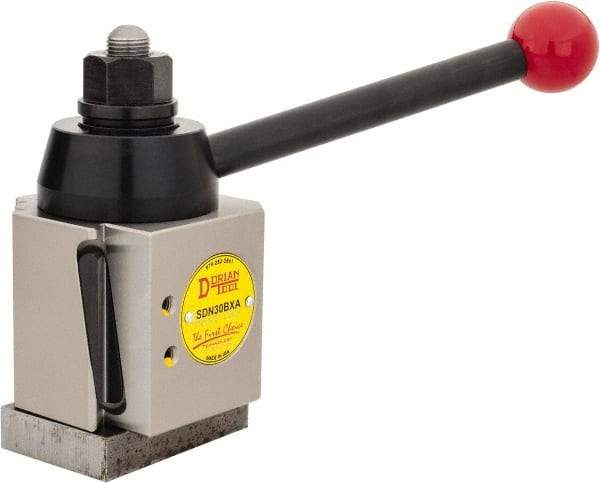

Dorian Tool - 13 to 15 Inch Lathe Swing, Wedge Type Quick Change Tool Post - 4-7/16 Inch Tool Post Height, Series BXA, 1-1/16 to 2-1/8 Inch Centerline Height Range, 5-13/32 Inch Overall Height
Item #: 09056649
Brand: Dorian Tool
Model #: 73310101002
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Wedge Type |
| Series | BXA |
| Lathe Swing (mm) | 330 to 380 |
| Lathe Swing (Inch) | 13 to 15 |
| Through Coolant | No |
| Base Width (mm) | 76.20 |
| Base Width (Inch) | 3 |
| Base Width (Decimal Inch) | 3.0000 |
| Tool Post Height (Decimal Inch) | 4.4375 |
| Tool Post Height (mm) | 119.63 |
| Centerline to Handle Edge (Inch) | 7-1/2 |
| Bolt Hole Diameter (mm) | 15.88 |
| Bolt Hole Diameter (Inch) | 5/8 |
| Bolt Hole Diameter (Decimal Inch) | 0.6250 |
| Overall Height (Inch) | 5-13/32 |
| Centerline to Body (Inch) | 1-1/2 |
| Minimum Centerline Height (mm) | 26.99 |
| Minimum Centerline Height (Inch) | 1-1/16 |
| Minimum Centerline Height (Decimal Inch) | 1.0625 |
| Maximum Centerline Height (Inch) | 2-1/8 |
| Maximum Centerline Height (Decimal Inch) | 1.9375 |
| Maximum Centerline Height (mm) | 49.21 |
| Body Height (mm) | 69.85 |
| Body Height (Inch) | 2-3/4 |
| Body Height (Decimal Inch) | 2.7500 |
| Repeatability (Decimal Inch) | 0.000100 |
| Includes | Machinable Blank T-Nut or Bolt Shaft |
