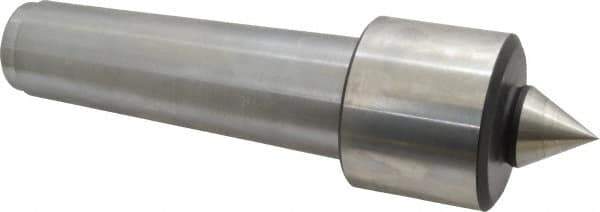

Royal Products - MT5 Taper Shank, 2.45" Head Diam 5,740 Lb Capacity Live Center - 4,500 Max RPM, 2.03" Head Length, 1-1/8" Point Diam, 1-3/16" Point Len, 750 Lb Max Workpc, 8-13/16" OAL, Standard Point
Item #: 08696999
Brand: Royal Products
Model #: 10855
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 750.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/8 |
| Point Diameter (Decimal Inch) | 1.1250 |
| Point Length (Inch) | 1-3/16 |
| Point Length (Decimal Inch) | 1.1875 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5740.00 |
| Thrust Load (Lb.) | 4990.00 |
| Radial Load (Lb.) | 750.00 |
| Head Diameter (Decimal Inch) | 2.4500 |
| Head Length (Decimal Inch) | 2.0300 |
| Shank Length (Decimal Inch) | 2.0300 |
| Overall Length (Inch) | 8-13/16 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4500 |
| Material | Steel |
| Carbide-Tipped | No |
