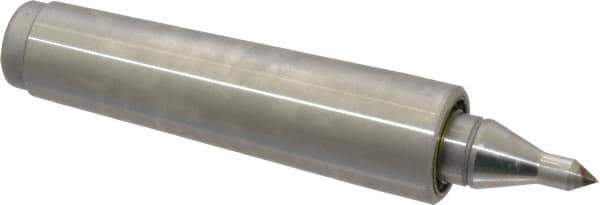

Royal Products - MT3 Taper Shank, 15/16" Head Diam 575 Lb Capacity Live Center - 5,000 Max RPM, 0.55" Point Diam, 1.1563" Point Len, 260 Lb Max Workpc, 4-27/32" OAL, 1/4" Tip Diam, Long Point
Item #: 08696031
Brand: Royal Products
Model #: 10533
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 260.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 0.5500 |
| Tip Diameter (Inch) | 1/4 |
| Tip Diameter (Decimal Inch) | 0.2500 |
| Point Length (Inch) | 1.1563 |
| Point Length (Decimal Inch) | 1.1563 |
| Accuracy (Decimal Inch) | 0.000500 |
| Load Capacity (Lb.) | 575.00 |
| Thrust Load (Lb.) | 315.00 |
| Radial Load (Lb.) | 260.00 |
| Head Diameter (Decimal Inch) | 0.9380 |
| Taper Length (Inch) | 3-3/16 |
| Shank Length (Decimal Inch) | 3.6900 |
| Overall Length (Inch) | 4-27/32 |
| Gage Line Diameter (Decimal Inch) | 0.9380 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
