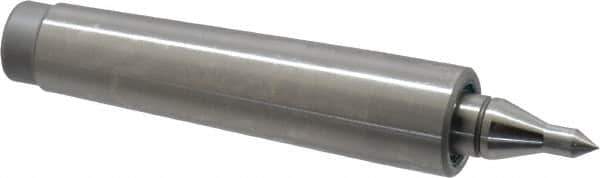

Royal Products - MT2 Taper Shank, 0.7" Head Diam 300 Lb Capacity Live Center - 5,000 Max RPM, 0.39" Point Diam, 7/8" Point Len, 150 Lb Max Workpc, 3-15/16" OAL, 3/16" Tip Diam, Long Point
Item #: 08696023
Brand: Royal Products
Model #: 10532
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 150.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 0.3900 |
| Tip Diameter (Inch) | 3/16 |
| Tip Diameter (Decimal Inch) | 0.1875 |
| Point Length (Inch) | 7/8 |
| Point Length (Decimal Inch) | 0.8750 |
| Accuracy (Decimal Inch) | 0.000500 |
| Load Capacity (Lb.) | 300.00 |
| Thrust Load (Lb.) | 150.00 |
| Radial Load (Lb.) | 150.00 |
| Head Diameter (Decimal Inch) | 0.7000 |
| Taper Length (Inch) | 2-9/16 |
| Shank Length (Decimal Inch) | 3.0600 |
| Overall Length (Inch) | 3-15/16 |
| Gage Line Diameter (Decimal Inch) | 0.7000 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
