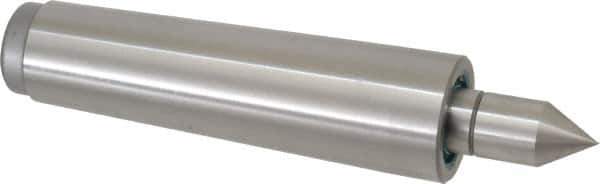

Royal Products - MT4 Taper Shank, 1.231" Head Diam 1,835 Lb Capacity Live Center - 4,500 Max RPM, 3/16" Head Length, 5/8" Point Diam, 1-3/8" Point Len, 1,400 Lb Max Workpc, 5-15/16" OAL, Standard Point
Item #: 08696007
Brand: Royal Products
Model #: 10524
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1400.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 5/8 |
| Point Diameter (Decimal Inch) | 0.6250 |
| Point Length (Inch) | 1-3/8 |
| Point Length (Decimal Inch) | 1.3750 |
| Accuracy (Decimal Inch) | 0.000500 |
| Load Capacity (Lb.) | 1835.00 |
| Thrust Load (Lb.) | 435.00 |
| Radial Load (Lb.) | 1400.00 |
| Head Diameter (Decimal Inch) | 1.2310 |
| Head Length (Inch) | 3/16 |
| Taper Length (Inch) | 4-1/16 |
| Shank Length (Inch) | 4-9/16 |
| Shank Length (Decimal Inch) | 4.5600 |
| Overall Length (Inch) | 5-15/16 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4500 |
| Material | Steel |
| Carbide-Tipped | No |
