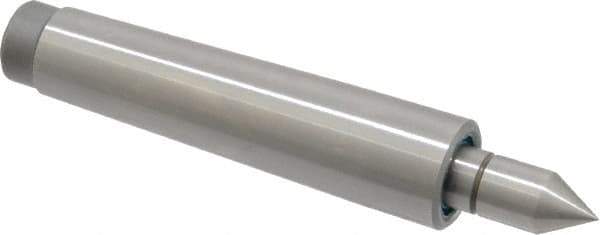

Royal Products - MT2 Taper Shank, 0.7" Head Diam 690 Lb Capacity Live Center - 5,000 Max RPM, 1/8" Head Length, 0.39" Point Diam, 7/8" Point Len, 540 Lb Max Workpc, 3-15/16" OAL, Standard Point
Item #: 08695983
Brand: Royal Products
Model #: 10522
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 540.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.3900 |
| Point Length (Inch) | 7/8 |
| Point Length (Decimal Inch) | 0.8750 |
| Accuracy (Decimal Inch) | 0.000500 |
| Load Capacity (Lb.) | 690.00 |
| Thrust Load (Lb.) | 150.00 |
| Radial Load (Lb.) | 540.00 |
| Head Diameter (Decimal Inch) | 0.7000 |
| Head Length (Inch) | 1/8 |
| Taper Length (Inch) | 2-9/16 |
| Shank Length (Inch) | 3-1/16 |
| Shank Length (Decimal Inch) | 3.0600 |
| Overall Length (Inch) | 3-15/16 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
