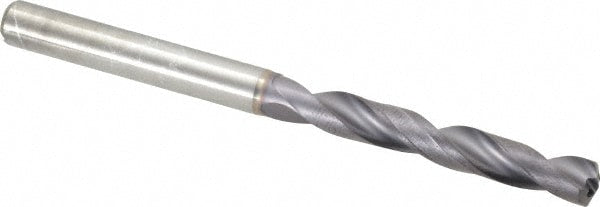

Jobber Drill: 5.80 mm Dia, 140 deg Point, Solid Carbide
Item #: 80382526
Brand: Kennametal
Model #: 3640755
Product Specifications
| Drill Bit Size (mm) | 5.80 |
| Drill Bit Size (Decimal Inch) | 0.2283 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | AlTiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Specification Number | DIN 6537K |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 82.00 |
| Overall Length (Decimal Inch) | 3.2283 |
| Spiral Type | Regular |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7323 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 15/64 |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 1.10 |
| Drill Bit Diameter Tolerance | 0.004 to 0.016 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
