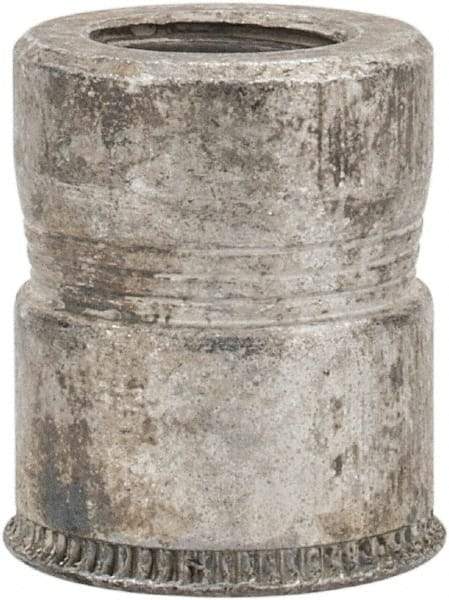

Made in USA - 5/16-18 UNC, Cadmium-Plated, Aluminum Knurled Rivet Nut Inserts - 0.03" to 0.09" Grip, 1/2" Drill Size, 0.528" Body Diam
Item #: 08680290
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Material | Aluminum |
| Thread Size | 5/16-18 |
| Drill Size (Inch) | 1/2 |
| Minimum Grip (Decimal Inch) | 0.0300 |
| Maximum Grip (Decimal Inch) | 0.0900 |
| Body Length (Decimal Inch) | 0.6150 |
| Finish/Coating | Cadmium-Plated |
| Thread Standard | UNC |
| Material Grade | 6061-T6 |
| Body Diameter (Decimal Inch) | 0.5280 |
| Maximum Installed Length (Decimal Inch) | 0.3250 |
