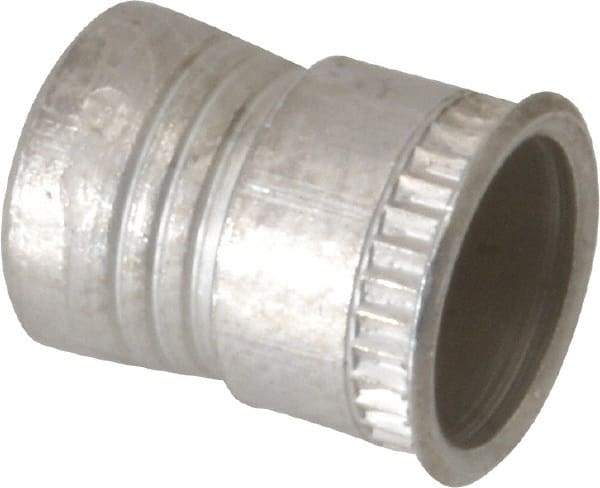

Made in USA - #10-24 UNC, Cadmium-Plated, Aluminum Knurled Rivet Nut Inserts - 0.03" to 0.09" Grip, 9/32" Drill Size, 0.36" Body Diam
Item #: 08680233
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Material | Aluminum |
| Thread Size | #10-24 |
| Drill Size (Inch) | 9/32 |
| Minimum Grip (Decimal Inch) | 0.0300 |
| Maximum Grip (Decimal Inch) | 0.0900 |
| Body Length (Decimal Inch) | 0.3700 |
| Finish/Coating | Cadmium-Plated |
| Thread Standard | UNC |
| Material Grade | 6061-T6 |
| Body Diameter (Decimal Inch) | 0.3600 |
| Maximum Installed Length (Decimal Inch) | 0.2050 |
