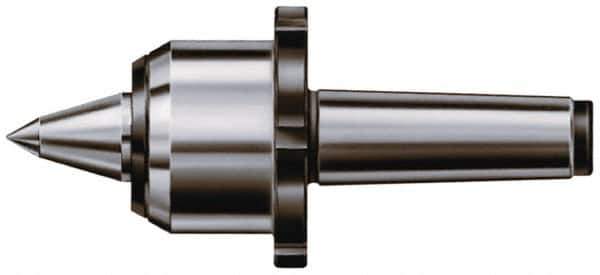

Rohm - MT6 Taper Shank, 4.61" Head Diam Live Center - 4,800 Max RPM, 4.1" Head Length, 2.28" Point Diam, 3.032" Point Len, 6,600 Lb Max Workpc, 14.27" OAL, Long Point
Item #: 08623712
Brand: Rohm
Model #: 304523
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 6600.00 |
| Maximum Workpiece Weight (kg) | 3000.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 2.2800 |
| Point Length (mm) | 77.00 |
| Point Length (Decimal Inch) | 3.0320 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 4.6100 |
| Head Length (Decimal Inch) | 4.1000 |
| Overall Length (Decimal Inch) | 14.2700 |
| Gage Line Diameter (mm) | 63.35 |
| Point to Gauge Line (mm) | 180.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4800 |
| Material | Tool Steel |
| Carbide-Tipped | No |
