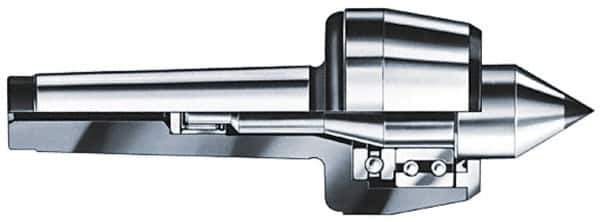

Rohm - MT5 Taper Shank, 3.54" Head Diam Carbide Tipped Live Center - 3,000 Max RPM, 2.76" Head Length, 1.5748" Point Diam, 1.988" Point Len, 2,200 Lb Max Workpc, 10.18" OAL, Standard Point
Item #: 08623647
Brand: Rohm
Model #: 221016
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2200.00 |
| Maximum Workpiece Weight (kg) | 1000.00 |
| Point Style | Standard |
| Point Diameter (mm) | 40.00 |
| Point Diameter (Decimal Inch) | 1.5748 |
| Point Length (mm) | 50.50 |
| Point Length (Decimal Inch) | 1.9880 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 3.5400 |
| Head Length (Decimal Inch) | 2.7600 |
| Overall Length (Decimal Inch) | 10.1800 |
| Gage Line Diameter (mm) | 44.40 |
| Point to Gauge Line (mm) | 129.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3000 |
| Material | Tool Steel |
| Carbide-Tipped | Yes |
