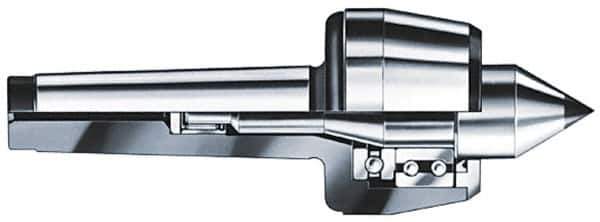

Rohm - MT3 Taper Shank, 2.36" Head Diam Carbide Tipped Live Center - 5,000 Max RPM, 1.66" Head Length, 63/64" Point Diam, 1.22" Point Len, 792 Lb Max Workpc, 6.32" OAL, Standard Point
Item #: 08623621
Brand: Rohm
Model #: 237413
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 792.00 |
| Maximum Workpiece Weight (kg) | 360.00 |
| Point Style | Standard |
| Point Diameter (mm) | 25.00 |
| Point Diameter (Decimal Inch) | 0.9843 |
| Point Length (mm) | 31.00 |
| Point Length (Decimal Inch) | 1.2200 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 2.3600 |
| Head Length (Decimal Inch) | 1.6600 |
| Overall Length (Decimal Inch) | 6.3200 |
| Gage Line Diameter (mm) | 23.83 |
| Point to Gauge Line (mm) | 79.50 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Tool Steel |
| Carbide-Tipped | Yes |
