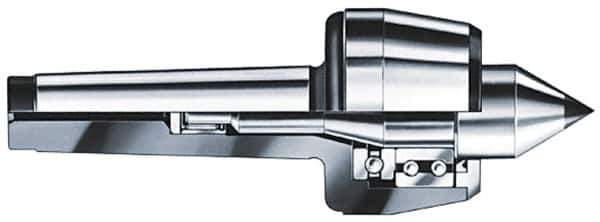

Rohm - MT2 Taper Shank, 1.77" Head Diam Carbide Tipped Live Center - 7,000 Max RPM, 1.35" Head Length, 0.7874" Point Diam, 0.945" Point Len, 264 Lb Max Workpc, 5.08" OAL, Standard Point
Item #: 08623613
Brand: Rohm
Model #: 32140
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 264.00 |
| Maximum Workpiece Weight (kg) | 120.00 |
| Point Style | Standard |
| Point Diameter (mm) | 20.00 |
| Point Diameter (Decimal Inch) | 0.7874 |
| Point Length (mm) | 24.00 |
| Point Length (Decimal Inch) | 0.9450 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 1.7700 |
| Head Length (Decimal Inch) | 1.3500 |
| Overall Length (Decimal Inch) | 5.0800 |
| Gage Line Diameter (mm) | 17.78 |
| Point to Gauge Line (mm) | 65.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 7000 |
| Material | Tool Steel |
| Carbide-Tipped | Yes |
