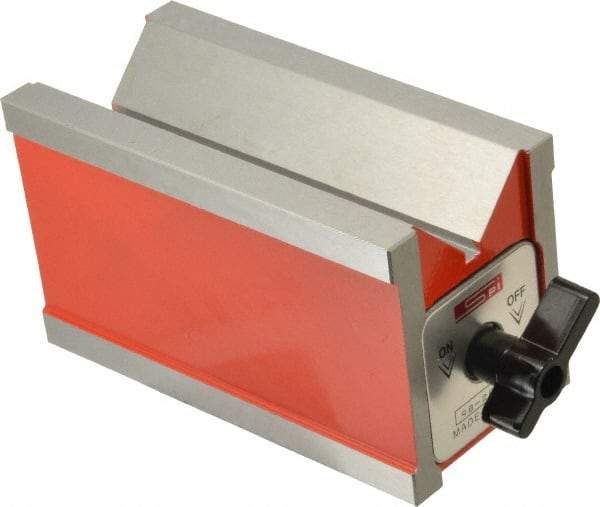

SPI - 38mm Max Capacity, 90° Angle, V-Block - 5" Long x 2-3/8" Wide x 2-7/8" High, Sold as Individual
Item #: 08618910
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (mm) | 125.02 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.9219 |
| Overall Width (mm) | 59.93 |
| Overall Width (Inch) | 2-3/8 |
| Overall Width (Decimal Inch) | 2.3594 |
| Overall Height (mm) | 73.03 |
| Overall Height (Decimal Inch) | 2.8750 |
| Overall Height (Inch) | 2-7/8 |
| V Angle | 90.00 |
| Maximum Capacity of V (mm) | 38.00 |
| Maximum Capacity of V (Decimal Inch) | 1.4961 |
| Magnetic | Yes |
