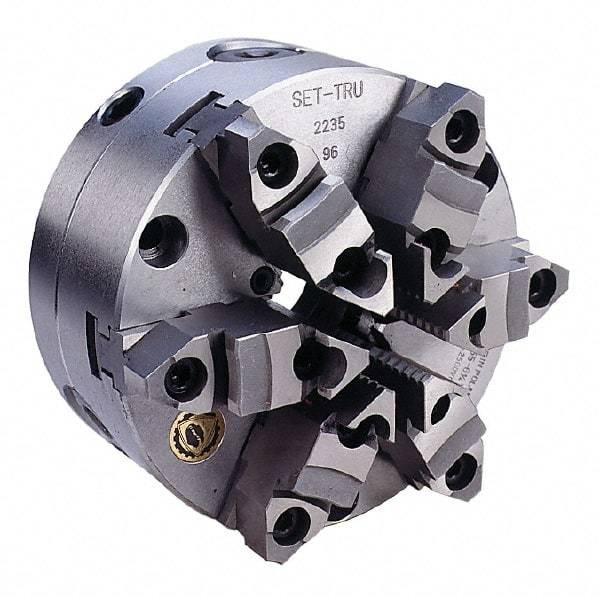

Bison - 6 Jaws, 8" Diam, Self Centering Manual Lathe Chuck - Front Mount, Adjustable, Reversible, 2,200 Max RPM, 2.165" Through Hole Diam, Forged Steel
Item #: 08610024
Brand: Bison
Model #: 7-868-0800
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 8 |
| Number of Jaws | 6 |
| Mount | Front Mount |
| Through-Hole Diameter (Decimal Inch) | 2.1650 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (mm) | 203.20 |
| Chuck Diameter (Inch) | 8 |
| Adjustable | Yes |
| Jaw Type | Master Jaws; Top Jaws |
| TIR Repeatability (Decimal Inch) | 0.0006 |
| Body Length (Decimal Inch) | 3.0710 |
| Maximum RPM | 2200 |
| Includes | (2) 5" Eye Bolts; (2) Hex Keys; 6" Eye Bolt; Chuck Wrench; Set of Fine Adjustment Screws; Set of Hard Master Jaws; Set of Hard Top Reversible Jaws; Set of Mounting Bolts |
