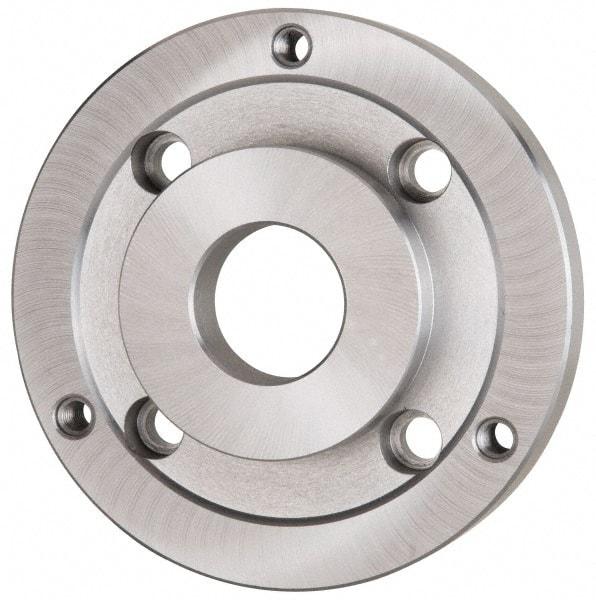

Bison - Adapter Back Plate for 10" Diam Self Centering Lathe Chucks - A2-6 Mount, 2.922" Through Hole Diam, 5.708mm ID, 9.84" OD, 3/4" Flange Height, Steel
Item #: 08609786
Brand: Bison
Model #: 7-874-106
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 10 |
| Spindle Nose Type | A Series |
| Mount | A2-6 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 2.9220 |
| Chuck Diameter Compatibility (Inch) | 10 |
| Inside Diameter (Decimal Inch) | 5.7080 |
| Outside Diameter (Decimal Inch) | 9.8400 |
| Flange Height (Decimal Inch) | 0.7500 |
| Material | Steel |
