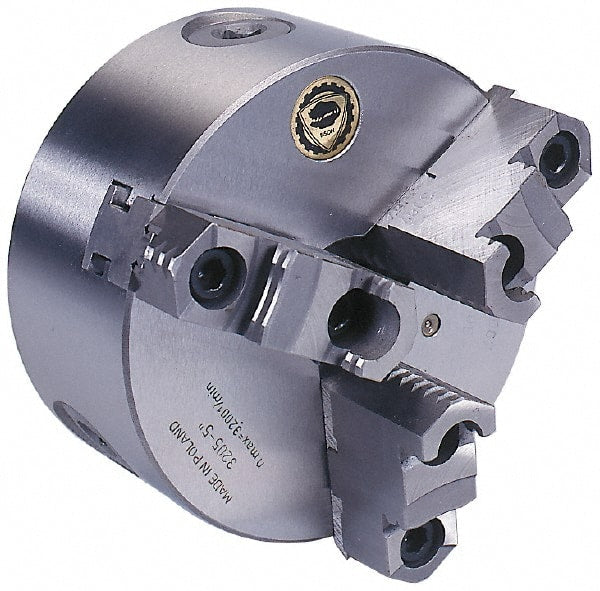

Self-Centering Manual Lathe Chuck: 3-Jaw, 10″ Dia 2,000 Max RPM
Item #: 08599383
Brand: Bison
Model #: 7-803-1035
Product Specifications
| Chuck Type | Self-Centering |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 2.9921 |
| Body Material | Cast Iron |
| Reversible Jaws | Reversible |
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (mm) | 254.00 |
| Minimum Jaw Capacity (Inch) | 0.1970 |
| Maximum Jaw Capacity (Inch) | 9.2500 |
| Maximum Rpm | 2000 |
| Axial Runout (Decimal Inch) | 0.0010 |
| Radial Runout (Decimal Inch) | 0.0016 |
| Body Length (Decimal Inch) | 4.0748 |
| Number Of Jaws | 3 |
| Contents | Two-Piece Jaws |
