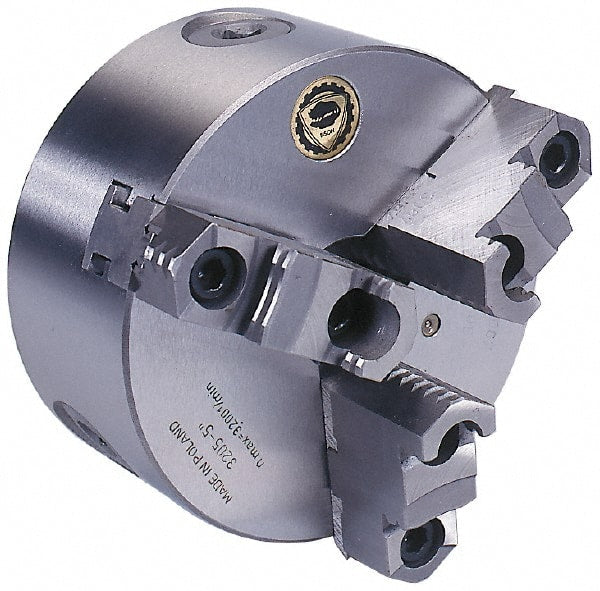

Self-Centering Manual Lathe Chuck: 3-Jaw, 10″ Dia 2,000 Max RPM
Item #: 08598229
Brand: Bison
Model #: 7-801-1018
Product Specifications
| Chuck Type | Self-Centering |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 2.9921 |
| Body Material | Cast Iron |
| Reversible Jaws | Reversible |
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (mm) | 254.00 |
| Minimum Jaw Capacity (Inch) | 0.1970 |
| Maximum Jaw Capacity (Inch) | 9.2500 |
| Maximum Rpm | 2000 |
| Axial Runout (Decimal Inch) | 0.0010 |
| Radial Runout (Decimal Inch) | 0.0016 |
| Body Length (Decimal Inch) | 4.0748 |
| Number Of Jaws | 3 |
| Contents | Set of Hard Master Jaws; Set of Soft Top Reversible Jaws; (2) Hex Keys; Chuck Wrench; Set of Mounting Bolts; Eye Bolts (Chuck Size 15-3/4 in & Larger) |
