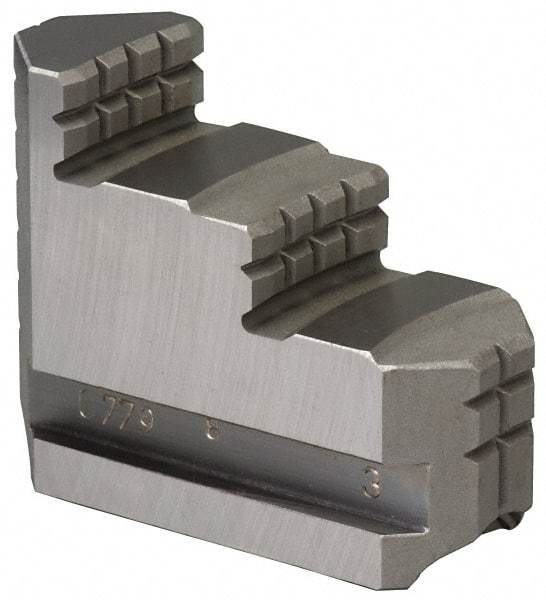

Bison - 3 to 3-1/2" Chuck Diam Compatibility, Steel Master Jaws - 0.51" Wide x 1.3385" Long x 1.18" High
Item #: 08580375
Brand: Bison
Model #: 7-890-103
Exact Tooling IR#: 04
Features and Benefits
Master jaws, also known as base jaws, are attched to the scroll within the chuck body. Top jaws are attached to them and they hold the workpiece.
| Product Specifications | |
|---|---|
| Jaw Type | Master Jaws |
| Maximum Compatible Chuck Diameter (Inch) | 3-1/2 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 3.50 |
| Material | Steel |
| Overall Width/Diameter (Decimal Inch) | 0.5100 |
| Overall Length (Decimal Inch) | 1.3385 |
| Minimum Compatible Chuck Diameter (Inch) | 3 |
| Number of Jaws | 4 |
| Overall Height (Decimal Inch) | 1.1800 |
