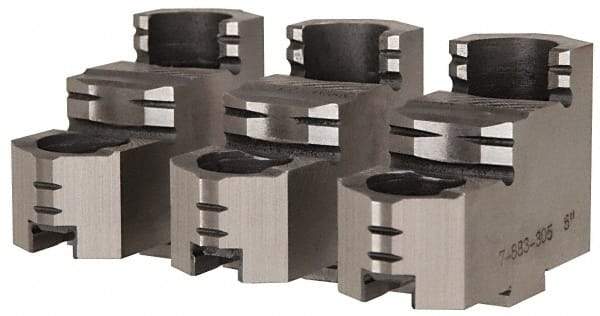

Bison - 25" Max Chuck Diam Compatibility, Steel Tongue & Groove Hard Lathe Top Jaws - 2.047" Wide x 5" Long x 3.228" High
Item #: 08579757
Brand: Bison
Model #: 7-883-325
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 25 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 25.00 |
| Material | Steel |
| Overall Width/Diameter (Decimal Inch) | 2.0470 |
| Overall Length (Decimal Inch) | 5.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 25 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 3.2280 |
| Fastener Size (Inch) | 3/4-10 |
| Distance Between Mount Hole Centers (Inch) | 3 |
